Animator

其是Android3.0之后加入的作用于对象属性的动画,Animator是所有属性动画的基类，其下有ValueAnimator,AnimatorSet,由ValueAnimator再拓展出ObjectAnimator,TimeAnimator

其整体结构图

ValueAnimator

为作用对象提供简单的能够计算动画时间和值得时间引擎，它运行在自定义的Handler里面以确保所有的属性改变都会在UI线程。主要API:

1
2
3
4
5
ValueAnimator ofInt(int... values)
ValueAnimator ofArgb(int... values) //颜色值变化
ValueAnimator ofFloat(float... values)
ValueAnimator ofPropertyValuesHolder(PropertyValuesHolder... values)
ValueAnimator ofObject(TypeEvaluator evaluator, Object... values)

这些方法里面都是进行值得初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
public void setIntValues(int... values) {
        if (values == null || values.length == 0) {
            return;
        }
        if (mValues == null || mValues.length == 0) {
            setValues(PropertyValuesHolder.ofInt("", values));
        } else {
            PropertyValuesHolder valuesHolder = mValues[0];
            valuesHolder.setIntValues(values);
        }
        // New property/values/target should cause re-initialization prior to starting
        mInitialized = false;
    }

都是重新封装转化成PropertyValuesHolder，这是封装动画属性和值得对象，之后会详细介绍

1
2
3
4
5
public void setEvaluator(TypeEvaluator value) {
        if (value != null && mValues != null && mValues.length > 0) {
            mValues[0].setEvaluator(value);
        }
    }

设置估值器，最后也是由PropertyValuesHolder保存

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
//参数代表是否反转动画
private void start(boolean playBackwards) {
        if (Looper.myLooper() == null) {
            throw new AndroidRuntimeException("Animators may only be run on Looper threads");
        }
        mReversing = playBackwards;
        mPlayingBackwards = playBackwards;
        //需要反转动画
        if (playBackwards && mSeekFraction != -1) {
            if (mSeekFraction == 0 && mCurrentIteration == 0) {
                // special case: reversing from seek-to-0 should act as if not seeked at all
                mSeekFraction = 0;
            } else if (mRepeatCount == INFINITE) {
                mSeekFraction = 1 - (mSeekFraction % 1);
            } else {
                mSeekFraction = 1 + mRepeatCount - (mCurrentIteration + mSeekFraction);
            }
            mCurrentIteration = (int) mSeekFraction;
            mSeekFraction = mSeekFraction % 1;
        }
        if (mCurrentIteration > 0 && mRepeatMode == REVERSE &&
                (mCurrentIteration < (mRepeatCount + 1) || mRepeatCount == INFINITE)) {
            // if we were seeked to some other iteration in a reversing animator,
            // figure out the correct direction to start playing based on the iteration
            if (playBackwards) {
                mPlayingBackwards = (mCurrentIteration % 2) == 0;
            } else {
                mPlayingBackwards = (mCurrentIteration % 2) != 0;
            }
        }
        int prevPlayingState = mPlayingState;
        mPlayingState = STOPPED;
        mStarted = true;
        mStartedDelay = false;
        mPaused = false;
        updateScaledDuration(); // in case the scale factor has changed since creation time
        //创建AnimatorHandler
        AnimationHandler animationHandler = getOrCreateAnimationHandler();
        animationHandler.mPendingAnimations.add(this);
        if (mStartDelay == 0) {
            // This sets the initial value of the animation, prior to actually starting it running
            if (prevPlayingState != SEEKED) {
                setCurrentPlayTime(0);
            }
            mPlayingState = STOPPED;
            mRunning = true;
            notifyStartListeners();
        }
        //开始动画
        animationHandler.start();
    }

开始动画的逻辑其实很简单，主要是判断动画是否需要反转。最终动画的更新交给AnimationHandler

AnimationHandler

处理所有运行中的动画的定时脉冲，这个机制能确保所有的动画都运行在UI线程，其使用Choreograhper(用于调整动画输入和绘制的时机)来执行周期的回调

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
private AnimationHandler() {
    mChoreographer = Choreographer.getInstance();
}

public void start() {
    scheduleAnimation();
}

private void scheduleAnimation() {
           if (!mAnimationScheduled) {
               //动画未执行过，由Choreographer回调执行
               mChoreographer.postCallback(Choreographer.CALLBACK_ANIMATION, mAnimate, null);
               mAnimationScheduled = true;
           }
       }

   final Runnable mAnimate = new Runnable() {
           @Override
           public void run() {
               mAnimationScheduled = false;
               doAnimationFrame(mChoreographer.getFrameTime());
           }
       };

   void doAnimationFrame(long frameTime) {
   //参数代表执行哪一帧动画
           mLastFrameTime = frameTime;

           // mPendingAnimations holds any animations that have requested to be started
           // We're going to clear mPendingAnimations, but starting animation may
           // cause more to be added to the pending list (for example, if one animation
           // starting triggers another starting). So we loop until mPendingAnimations
           // is empty.
           while (mPendingAnimations.size() > 0) {
           //如果有等待执行的动画，清除并优先执行这些动画
               ArrayList<ValueAnimator> pendingCopy =
                       (ArrayList<ValueAnimator>) mPendingAnimations.clone();
               mPendingAnimations.clear();
               int count = pendingCopy.size();
               for (int i = 0; i < count; ++i) {
                   ValueAnimator anim = pendingCopy.get(i);
                   // If the animation has a startDelay, place it on the delayed list
                   if (anim.mStartDelay == 0) {
                       anim.startAnimation(this);
                   } else {
                       mDelayedAnims.add(anim);
                   }
               }
           }

           // Next, process animations currently sitting on the delayed queue, adding
           // them to the active animations if they are ready
           //将延时队列中的动画加入到准备完成队列，开始执行动画，清空队列
           int numDelayedAnims = mDelayedAnims.size();
           for (int i = 0; i < numDelayedAnims; ++i) {
               ValueAnimator anim = mDelayedAnims.get(i);
               if (anim.delayedAnimationFrame(frameTime)) {
                   mReadyAnims.add(anim);
               }
           }
           int numReadyAnims = mReadyAnims.size();
           if (numReadyAnims > 0) {
               for (int i = 0; i < numReadyAnims; ++i) {
                   ValueAnimator anim = mReadyAnims.get(i);
                   anim.startAnimation(this);
                   anim.mRunning = true;
                   mDelayedAnims.remove(anim);
               }
               mReadyAnims.clear();
           }

           // Now process all active animations. The return value from animationFrame()
           // tells the handler whether it should now be ended
           int numAnims = mAnimations.size();
           for (int i = 0; i < numAnims; ++i) {
               mTmpAnimations.add(mAnimations.get(i));
           }
           for (int i = 0; i < numAnims; ++i) {
               ValueAnimator anim = mTmpAnimations.get(i);
               if (mAnimations.contains(anim) && anim.doAnimationFrame(frameTime)) {
                   mEndingAnims.add(anim);
               }
           }
           mTmpAnimations.clear();
           if (mEndingAnims.size() > 0) {
               for (int i = 0; i < mEndingAnims.size(); ++i) {
                   mEndingAnims.get(i).endAnimation(this);
               }
               mEndingAnims.clear();
           }

           // Schedule final commit for the frame.
           mChoreographer.postCallback(Choreographer.CALLBACK_COMMIT, mCommit, null);

           // If there are still active or delayed animations, schedule a future call to
           // onAnimate to process the next frame of the animations.
           if (!mAnimations.isEmpty() || !mDelayedAnims.isEmpty()) {
               scheduleAnimation();
           }
       }

流程图

ValueAnimator

插值器

插值器是描述动画变化的频率。其主要方法是

1
2
//输入动画基准值，得到计算后的某个时刻的值
float getInterpolation(float input);

类关系图:
interpolator

系统已经为开发者准备了一些默认的插值器，我们来简单看下这些插值器的算法

LinearInterpolator(线性插值器)
1
2
3
4
//输入既是输出
public float getInterpolation(float input) {
        return input;
}

AccelerateDecelerateInterpolator(加减速插值器)
1
2
3
public float getInterpolation(float input) {
        return (float)(Math.cos((input + 1) * Math.PI) / 2.0f) + 0.5f;
    }

其特性是在动画开始和结束阶段变化缓慢，中间阶段变化迅速

AccelerateInterpolator(加速插值器)
1
2
3
4
5
6
7
public float getInterpolation(float input) {
        if (mFactor == 1.0f) {
            return input * input;
        } else {
            return (float)Math.pow(input, mDoubleFactor);
        }
    }


其特点是动画变化速度一直加快，有个加速因子，默认为1。

AnticipateInterpolator
1
2
3
4
public float getInterpolation(float t) {
        // a(t) = t * t * ((tension + 1) * t - tension)
        return t * t * ((mTension + 1) * t - mTension);
    }

AnticipateOvershootInterpolator
1
2
3
4
5
6
7
8
public float getInterpolation(float t) {
        // a(t, s) = t * t * ((s + 1) * t - s)
        // o(t, s) = t * t * ((s + 1) * t + s)
        // f(t) = 0.5 * a(t * 2, tension * extraTension), when t < 0.5
        // f(t) = 0.5 * (o(t * 2 - 2, tension * extraTension) + 2), when t <= 1.0
        if (t < 0.5f) return 0.5f * a(t * 2.0f, mTension);
        else return 0.5f * (o(t * 2.0f - 2.0f, mTension) + 2.0f);
    }

还有很多别的插值器。这里就不多加赘述了。只要将相应的算法写入getInterpolation中即可

使用的地方

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
void animateValue(float fraction) {
//计算动画值
        fraction = mInterpolator.getInterpolation(fraction);
        mCurrentFraction = fraction;
        int numValues = mValues.length;
        for (int i = 0; i < numValues; ++i) {
            mValues[i].calculateValue(fraction);
        }
        if (mUpdateListeners != null) {
            int numListeners = mUpdateListeners.size();
            for (int i = 0; i < numListeners; ++i) {
                mUpdateListeners.get(i).onAnimationUpdate(this);
            }
        }
    }

TypeEvaluator(估值器)

根据当前的动画频率，起始值，结束值计算当前值

1
public T evaluate(float fraction, T startValue, T endValue);
ArgbEvaluator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public Object evaluate(float fraction, Object startValue, Object endValue) {
        int startInt = (Integer) startValue;
        int startA = (startInt >> 24) & 0xff;
        int startR = (startInt >> 16) & 0xff;
        int startG = (startInt >> 8) & 0xff;
        int startB = startInt & 0xff;

        int endInt = (Integer) endValue;
        int endA = (endInt >> 24) & 0xff;
        int endR = (endInt >> 16) & 0xff;
        int endG = (endInt >> 8) & 0xff;
        int endB = endInt & 0xff;

        return (int)((startA + (int)(fraction * (endA - startA))) << 24) |
                (int)((startR + (int)(fraction * (endR - startR))) << 16) |
                (int)((startG + (int)(fraction * (endG - startG))) << 8) |
                (int)((startB + (int)(fraction * (endB - startB))));
    }

算法是线性函数，主要因子fraction来自插值器的计算, y= a + kx

IntEvaluator
1
2
3
4
public Integer evaluate(float fraction, Integer startValue, Integer endValue) {
        int startInt = startValue;
        return (int)(startInt + fraction * (endValue - startInt));
    }

估值器主要实在KeyFrames中使用，而KeyFrames存在PropertyValuesHolder当中，最终Choreographer来更新动画使用

Choreograhper

协调动画，输入和绘制的时间。其会收到来自显示系统的定时脉冲，然后安排工作作为下一帧渲染的一部分。

1
2
3
4
5
6
7
8
9
10
11
12
13
private Choreographer(Looper looper) {
        mLooper = looper;
        mHandler = new FrameHandler(looper);
        mDisplayEventReceiver = USE_VSYNC ? new FrameDisplayEventReceiver(looper) : null;
        mLastFrameTimeNanos = Long.MIN_VALUE;

        mFrameIntervalNanos = (long)(1000000000 / getRefreshRate());

        mCallbackQueues = new CallbackQueue[CALLBACK_LAST + 1];
        for (int i = 0; i <= CALLBACK_LAST; i++) {
            mCallbackQueues[i] = new CallbackQueue();
        }
    }
  • 初始化，创建FrameHandler，创建回调队列
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public void postCallback(int callbackType, Runnable action, Object token) {
        postCallbackDelayed(callbackType, action, token, 0);
    }

private void postCallbackDelayedInternal(int callbackType,
        Object action, Object token, long delayMillis) {
    if (DEBUG_FRAMES) {
        Log.d(TAG, "PostCallback: type=" + callbackType
                + ", action=" + action + ", token=" + token
                + ", delayMillis=" + delayMillis);
    }

    synchronized (mLock) {
        final long now = SystemClock.uptimeMillis();
        final long dueTime = now + delayMillis;
        mCallbackQueues[callbackType].addCallbackLocked(dueTime, action, token);

        if (dueTime <= now) {
            scheduleFrameLocked(now);
        } else {
            Message msg = mHandler.obtainMessage(MSG_DO_SCHEDULE_CALLBACK, action);
            msg.arg1 = callbackType;
            msg.setAsynchronous(true);
            mHandler.sendMessageAtTime(msg, dueTime);
        }
    }
}
  • 将回调加入回调队列，如果没有延时，锁定当前帧，如果使用VSYNC，诺当前运行在相同的线程，直接通过FrameDisplayEventReceiver要求同步，其他情况发送消息到Handler中执行。Handler处理三种消息,MSG_DO_FRAME,MSG_DO_SCHEDULE_VSYNC, MSG_DO_SCHEDULE_CALLBACK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
void doCallbacks(int callbackType, long frameTimeNanos) {
        CallbackRecord callbacks;
        synchronized (mLock) {
            // We use "now" to determine when callbacks become due because it's possible
            // for earlier processing phases in a frame to post callbacks that should run
            // in a following phase, such as an input event that causes an animation to start.
            final long now = System.nanoTime();
            callbacks = mCallbackQueues[callbackType].extractDueCallbacksLocked(
                    now / TimeUtils.NANOS_PER_MS);
            if (callbacks == null) {
                return;
            }
            mCallbacksRunning = true;

            // Update the frame time if necessary when committing the frame.
            // We only update the frame time if we are more than 2 frames late reaching
            // the commit phase.  This ensures that the frame time which is observed by the
            // callbacks will always increase from one frame to the next and never repeat.
            // We never want the next frame's starting frame time to end up being less than
            // or equal to the previous frame's commit frame time.  Keep in mind that the
            // next frame has most likely already been scheduled by now so we play it
            // safe by ensuring the commit time is always at least one frame behind.
            if (callbackType == Choreographer.CALLBACK_COMMIT) {
                final long jitterNanos = now - frameTimeNanos;
                Trace.traceCounter(Trace.TRACE_TAG_VIEW, "jitterNanos", (int) jitterNanos);
                if (jitterNanos >= 2 * mFrameIntervalNanos) {
                    final long lastFrameOffset = jitterNanos % mFrameIntervalNanos
                            + mFrameIntervalNanos;
                    if (DEBUG_JANK) {
                        Log.d(TAG, "Commit callback delayed by " + (jitterNanos * 0.000001f)
                                + " ms which is more than twice the frame interval of "
                                + (mFrameIntervalNanos * 0.000001f) + " ms!  "
                                + "Setting frame time to " + (lastFrameOffset * 0.000001f)
                                + " ms in the past.");
                        mDebugPrintNextFrameTimeDelta = true;
                    }
                    frameTimeNanos = now - lastFrameOffset;
                    mLastFrameTimeNanos = frameTimeNanos;
                }
            }
        }
        try {
            Trace.traceBegin(Trace.TRACE_TAG_VIEW, CALLBACK_TRACE_TITLES[callbackType]);
            for (CallbackRecord c = callbacks; c != null; c = c.next) {
                if (DEBUG_FRAMES) {
                    Log.d(TAG, "RunCallback: type=" + callbackType
                            + ", action=" + c.action + ", token=" + c.token
                            + ", latencyMillis=" + (SystemClock.uptimeMillis() - c.dueTime));
                }
                c.run(frameTimeNanos);
            }
        } finally {
            synchronized (mLock) {
            //执行所有的回调
                mCallbacksRunning = false;
                do {
                    final CallbackRecord next = callbacks.next;
                    recycleCallbackLocked(callbacks);
                    callbacks = next;
                } while (callbacks != null);
            }
            Trace.traceEnd(Trace.TRACE_TAG_VIEW);
        }
    }
  • MSG_DO_FRAME:判断当前帧时间，低于上次绘制时间，要求同步。否则调用doCallbacks，执行回调队列中的回调
流程图

ObjectAnimator

支持对目标对象的属性做动画，对ValueAnimator的拓展

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
//可以直接设置target,propertyName
public static ObjectAnimator ofInt(Object target, String propertyName, int... values) {
        ObjectAnimator anim = new ObjectAnimator(target, propertyName);
        anim.setIntValues(values);
        return anim;
    }

public void setTarget(@Nullable Object target) {
        final Object oldTarget = getTarget();
        //老的目标与当前目标不同，取消。设置弱引用目标对象
        if (oldTarget != target) {
            if (isStarted()) {
                cancel();
            }
            mTarget = target == null ? null : new WeakReference<Object>(target);
            // New target should cause re-initialization prior to starting
            mInitialized = false;
        }
    }

public void start() {
        // See if any of the current active/pending animators need to be canceled
        AnimationHandler handler = sAnimationHandler.get();
        if (handler != null) {
            int numAnims = handler.mAnimations.size();
            for (int i = numAnims - 1; i >= 0; i--) {
                if (handler.mAnimations.get(i) instanceof ObjectAnimator) {
                    ObjectAnimator anim = (ObjectAnimator) handler.mAnimations.get(i);
                    if (anim.mAutoCancel && hasSameTargetAndProperties(anim)) {
                    //相同的目标和属性，取消之前的动画
                        anim.cancel();
                    }
                }
            }

            //等待的动画也一样
            numAnims = handler.mPendingAnimations.size();
            for (int i = numAnims - 1; i >= 0; i--) {
                if (handler.mPendingAnimations.get(i) instanceof ObjectAnimator) {
                    ObjectAnimator anim = (ObjectAnimator) handler.mPendingAnimations.get(i);
                    if (anim.mAutoCancel && hasSameTargetAndProperties(anim)) {
                        anim.cancel();
                    }
                }
            }

            //延时的动画也一样
            numAnims = handler.mDelayedAnims.size();
            for (int i = numAnims - 1; i >= 0; i--) {
                if (handler.mDelayedAnims.get(i) instanceof ObjectAnimator) {
                    ObjectAnimator anim = (ObjectAnimator) handler.mDelayedAnims.get(i);
                    if (anim.mAutoCancel && hasSameTargetAndProperties(anim)) {
                        anim.cancel();
                    }
                }
            }
        }
        if (DBG) {
            Log.d(LOG_TAG, "Anim target, duration: " + getTarget() + ", " + getDuration());
            for (int i = 0; i < mValues.length; ++i) {
                PropertyValuesHolder pvh = mValues[i];
                Log.d(LOG_TAG, "   Values[" + i + "]: " +
                    pvh.getPropertyName() + ", " + pvh.mKeyframes.getValue(0) + ", " +
                    pvh.mKeyframes.getValue(1));
            }
        }
        super.start();
    }

void animateValue(float fraction) {
        final Object target = getTarget();
        if (mTarget != null && target == null) {
            // We lost the target reference, cancel and clean up.
            cancel();
            return;
        }

        super.animateValue(fraction);
        int numValues = mValues.length;
        for (int i = 0; i < numValues; ++i) {
            mValues[i].setAnimatedValue(target);
        }
    }

public void setupStartValues() {
		  //初始化动画
        initAnimation();

        final Object target = getTarget();
        if (target != null) {
            final int numValues = mValues.length;
            for (int i = 0; i < numValues; ++i) {
                mValues[i].setupStartValue(target);
            }
        }
    }

void initAnimation() {
        if (!mInitialized) {
            // mValueType may change due to setter/getter setup; do this before calling super.init(),
            // which uses mValueType to set up the default type evaluator.
            final Object target = getTarget();
            if (target != null) {
                final int numValues = mValues.length;
                for (int i = 0; i < numValues; ++i) {
                //初始化getter setter
                   mValues[i].setupSetterAndGetter(target);
                }
            }
            super.initAnimation();
        }
    }
  • ObjectAnimator比ValueAnimator多了target和Property，这些信息都在PropertyValuesHolder,必须要要有getter/setter才能更新目标对象

PropertyValuesHolder 处理setter, getter的寻找

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
void setupSetterAndGetter(Object target) {
        mKeyframes.invalidateCache();
        //属性不为空时,从Propery拿值，并设置到keyFrame
        if (mProperty != null) {
            // check to make sure that mProperty is on the class of target
            try {
                Object testValue = null;
                List<Keyframe> keyframes = mKeyframes.getKeyframes();
                int keyframeCount = keyframes == null ? 0 : keyframes.size();
                for (int i = 0; i < keyframeCount; i++) {
                    Keyframe kf = keyframes.get(i);
                    if (!kf.hasValue() || kf.valueWasSetOnStart()) {
                        if (testValue == null) {
                            testValue = convertBack(mProperty.get(target));
                        }
                        kf.setValue(testValue);
                        kf.setValueWasSetOnStart(true);
                    }
                }
                return;
            } catch (ClassCastException e) {
                Log.w("PropertyValuesHolder","No such property (" + mProperty.getName() +
                        ") on target object " + target + ". Trying reflection instead");
                mProperty = null;
            }
        }
        // We can't just say 'else' here because the catch statement sets mProperty to null.
        //如果property为空，从目标对象中寻找getter setter
        if (mProperty == null) {
            Class targetClass = target.getClass();
            if (mSetter == null) {
                setupSetter(targetClass);
            }
            List<Keyframe> keyframes = mKeyframes.getKeyframes();
            int keyframeCount = keyframes == null ? 0 : keyframes.size();
            for (int i = 0; i < keyframeCount; i++) {
                Keyframe kf = keyframes.get(i);
                if (!kf.hasValue() || kf.valueWasSetOnStart()) {
                    if (mGetter == null) {
                    //getter没找到，再次寻找
                        setupGetter(targetClass);
                        //依然没找到
                        if (mGetter == null) {
                            // Already logged the error - just return to avoid NPE
                            return;
                        }
                    }
                    try {
                        Object value = convertBack(mGetter.invoke(target));
                        //找到getter，将值传给keyFrame
                        kf.setValue(value);
                        kf.setValueWasSetOnStart(true);
                    } catch (InvocationTargetException e) {
                        Log.e("PropertyValuesHolder", e.toString());
                    } catch (IllegalAccessException e) {
                        Log.e("PropertyValuesHolder", e.toString());
                    }
                }
            }
        }
    }

void setAnimatedValue(Object target) {
        if (mProperty != null) {
            mProperty.set(target, getAnimatedValue());
        }
        if (mSetter != null) {
        //setter不为空，会调用目标对象的setter
            try {
                mTmpValueArray[0] = getAnimatedValue();
                mSetter.invoke(target, mTmpValueArray);
            } catch (InvocationTargetException e) {
                Log.e("PropertyValuesHolder", e.toString());
            } catch (IllegalAccessException e) {
                Log.e("PropertyValuesHolder", e.toString());
            }
        }
    }
  • PropertyValuesHolder主要持有动画的相关属性信息，包括关键帧集，插值器，估值器等

KeyFrame

动画关键帧，保存动画某一帧的时间/值。被ValueAnimator使用来计算两个值之间的动画值。PropertyValuesHolder保存了KeyFrames其保存了多个KeyFrame。简单来说KeyFrame就是我们做动画的起始值，中间值，结束值，这些都是由开发者定义。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public void setIntValues(int... values) {
        mValueType = int.class;
        mKeyframes = KeyframeSet.ofInt(values);
    }

keyFrameSet:
public static KeyframeSet ofInt(int... values) {
        int numKeyframes = values.length;
        IntKeyframe keyframes[] = new IntKeyframe[Math.max(numKeyframes,2)];
        if (numKeyframes == 1) {
        //当只设置了一个值时，会有两个关键帧，起始关键这和结束关键帧
            keyframes[0] = (IntKeyframe) Keyframe.ofInt(0f);
            keyframes[1] = (IntKeyframe) Keyframe.ofInt(1f, values[0]);
        } else {
        //起始关键帧
            keyframes[0] = (IntKeyframe) Keyframe.ofInt(0f, values[0]);
            for (int i = 1; i < numKeyframes; ++i) {
            //计算每个阶段的关键帧
                keyframes[i] =
                        (IntKeyframe) Keyframe.ofInt((float) i / (numKeyframes - 1), values[i]);
            }
        }
        return new IntKeyframeSet(keyframes);
    }
  • 动画至少会包含两个关键帧，一个起始关键帧，一个结束关键帧。中间有多少关键帧由开发者自行定义

AnimatorSet

允许同时播放多个动画或者定义动画的播放顺序

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
public void start() {
        mTerminated = false;
        mStarted = true;
        mPaused = false;

        for (Node node : mNodes) {
            //禁止异步运行node.animation.setAllowRunningAsynchronously(false);
        }

        //设置所有动画的长度
        if (mDuration >= 0) {
            // If the duration was set on this AnimatorSet, pass it along to all child animations
            for (Node node : mNodes) {
                // TODO: don't set the duration of the timing-only nodes created by AnimatorSet to
                // insert "play-after" delays
                node.animation.setDuration(mDuration);
            }
        }
        //设置所有动画的插值器
        if (mInterpolator != null) {
            for (Node node : mNodes) {
                node.animation.setInterpolator(mInterpolator);
            }
        }
        // First, sort the nodes (if necessary). This will ensure that sortedNodes
        // contains the animation nodes in the correct order.
        //对所有的动画节点进行排序
        sortNodes();

		  //清除老的动画监听
        int numSortedNodes = mSortedNodes.size();
        for (int i = 0; i < numSortedNodes; ++i) {
            Node node = mSortedNodes.get(i);
            // First, clear out the old listeners
            ArrayList<AnimatorListener> oldListeners = node.animation.getListeners();
            if (oldListeners != null && oldListeners.size() > 0) {
                final ArrayList<AnimatorListener> clonedListeners = new
                        ArrayList<AnimatorListener>(oldListeners);

                for (AnimatorListener listener : clonedListeners) {
                    if (listener instanceof DependencyListener ||
                            listener instanceof AnimatorSetListener) {
                        node.animation.removeListener(listener);
                    }
                }
            }
        }

        // nodesToStart holds the list of nodes to be started immediately. We don't want to
        // start the animations in the loop directly because we first need to set up
        // dependencies on all of the nodes. For example, we don't want to start an animation
        // when some other animation also wants to start when the first animation begins.
        final ArrayList<Node> nodesToStart = new ArrayList<Node>();
        for (int i = 0; i < numSortedNodes; ++i) {
            Node node = mSortedNodes.get(i);
            if (mSetListener == null) {
                mSetListener = new AnimatorSetListener(this);
            }
            //动画节点没有依赖别的节点，添加到即将开始的队列中
            if (node.dependencies == null || node.dependencies.size() == 0) {
                nodesToStart.add(node);
            } else {
            //如果有依赖的话，添加依赖监听，并把依赖添加到临时依赖链中
                int numDependencies = node.dependencies.size();
                for (int j = 0; j < numDependencies; ++j) {
                    Dependency dependency = node.dependencies.get(j);
                    dependency.node.animation.addListener(
                            new DependencyListener(this, node, dependency.rule));
                }
                node.tmpDependencies = (ArrayList<Dependency>) node.dependencies.clone();
            }
            node.animation.addListener(mSetListener);
        }
        // Now that all dependencies are set up, start the animations that should be started.
        //开始动画
        if (mStartDelay <= 0) {
            for (Node node : nodesToStart) {
                node.animation.start();
                mPlayingSet.add(node.animation);
            }
        } else {
            mDelayAnim = ValueAnimator.ofFloat(0f, 1f);
            mDelayAnim.setDuration(mStartDelay);
            mDelayAnim.addListener(new AnimatorListenerAdapter() {
                boolean canceled = false;
                public void onAnimationCancel(Animator anim) {
                    canceled = true;
                }
                public void onAnimationEnd(Animator anim) {
                    if (!canceled) {
                        int numNodes = nodesToStart.size();
                        for (int i = 0; i < numNodes; ++i) {
                            Node node = nodesToStart.get(i);
                            node.animation.start();
                            mPlayingSet.add(node.animation);
                        }
                    }
                    mDelayAnim = null;
                }
            });
            mDelayAnim.start();
        }
        //动画开始回调
        if (mListeners != null) {
            ArrayList<AnimatorListener> tmpListeners =
                    (ArrayList<AnimatorListener>) mListeners.clone();
            int numListeners = tmpListeners.size();
            for (int i = 0; i < numListeners; ++i) {
                tmpListeners.get(i).onAnimationStart(this);
            }
        }
        //如果没有动画，动画结束回调
        if (mNodes.size() == 0 && mStartDelay == 0) {
            // Handle unusual case where empty AnimatorSet is started - should send out
            // end event immediately since the event will not be sent out at all otherwise
            mStarted = false;
            if (mListeners != null) {
                ArrayList<AnimatorListener> tmpListeners =
                        (ArrayList<AnimatorListener>) mListeners.clone();
                int numListeners = tmpListeners.size();
                for (int i = 0; i < numListeners; ++i) {
                    tmpListeners.get(i).onAnimationEnd(this);
                }
            }
        }
    }
  • 流程:
    1. 首先禁止异步运行动画，设置所有动画的时间和插值器。
    2. 对所有的动画进行排序(根据依赖关系),取消所有老的监听。如果动画没有依赖，加入即将开始的动画队列，否则创建依赖监听，创建临时依赖
    3. 没有延时，启动动画。否则创建延时动画，延时动画结束后，后续动画开始
    4. 动画开始监听回调，如果没有动画，动画结束监听回调
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
动画排序
private void sortNodes() {
        if (mNeedsSort) {
            mSortedNodes.clear();
            ArrayList<Node> roots = new ArrayList<Node>();
            int numNodes = mNodes.size();
            //没有依赖的动画变成根节点
            for (int i = 0; i < numNodes; ++i) {
                Node node = mNodes.get(i);
                if (node.dependencies == null || node.dependencies.size() == 0) {
                    roots.add(node);
                }
            }
            ArrayList<Node> tmpRoots = new ArrayList<Node>();
            while (roots.size() > 0) {
            //遍历每个根节点
                int numRoots = roots.size();
                for (int i = 0; i < numRoots; ++i) {
                    Node root = roots.get(i);
                    mSortedNodes.add(root);
                    if (root.nodeDependents != null) {
                        int numDependents = root.nodeDependents.size();
                        //根节点有依赖
                        for (int j = 0; j < numDependents; ++j) {
                            Node node = root.nodeDependents.get(j);
                            //将此根节点从依赖中移除node.nodeDependencies.remove(root);
                            if (node.nodeDependencies.size() == 0) {
                                tmpRoots.add(node);
                            }
                        }
                    }
                }
                roots.clear();
                roots.addAll(tmpRoots);
                tmpRoots.clear();
            }
            mNeedsSort = false;
            if (mSortedNodes.size() != mNodes.size()) {
                throw new IllegalStateException("Circular dependencies cannot exist"
                        + " in AnimatorSet");
            }
        } else {
            // Doesn't need sorting, but still need to add in the nodeDependencies list
            // because these get removed as the event listeners fire and the dependencies
            // are satisfied
            int numNodes = mNodes.size();
            for (int i = 0; i < numNodes; ++i) {
                Node node = mNodes.get(i);
                if (node.dependencies != null && node.dependencies.size() > 0) {
                    int numDependencies = node.dependencies.size();
                    for (int j = 0; j < numDependencies; ++j) {
                        Dependency dependency = node.dependencies.get(j);
                        if (node.nodeDependencies == null) {
                            node.nodeDependencies = new ArrayList<Node>();
                        }
                        if (!node.nodeDependencies.contains(dependency.node)) {
                            node.nodeDependencies.add(dependency.node);
                        }
                    }
                }
                // nodes are 'done' by default; they become un-done when started, and done
                // again when ended
                node.done = false;
            }
        }
    }
```
* 动画排序规则:
  * 如果需要排序
      1. 没有依赖的动画变成根节点.
      2. 循环遍历所有根节点，将根节点从依赖节点中移除
  * 不需要排序
      1. 添加回依赖

##### Node
代表动画和其依赖。其包含一个动画信息，节点动画依赖集合，独立节点集合

##### Dependency
动画节点与节点之间的依赖描述

```java
static final int WITH = 0; // dependent node must start with this dependency node
        static final int AFTER = 1; // dependent node must start when this dependency node finishes
  • 包含两个规则，一起，后续
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

//多个动画一起播放，添加动画``WITH``依赖
public void playTogether(Animator... items) {
        if (items != null) {
            mNeedsSort = true;
            Builder builder = play(items[0]);
            for (int i = 1; i < items.length; ++i) {
                builder.with(items[i]);
            }
        }
    }

public Builder with(Animator anim) {
            Node node = mNodeMap.get(anim);
            if (node == null) {
                node = new Node(anim);
                mNodeMap.put(anim, node);
                mNodes.add(node);
            }
            Dependency dependency = new Dependency(mCurrentNode, Dependency.WITH);
            node.addDependency(dependency);
            return this;
        }

//多个动画串行播放
public void playSequentially(Animator... items) {
        if (items != null) {
            mNeedsSort = true;
            if (items.length == 1) {
                play(items[0]);
            } else {
                mReversible = false;
                for (int i = 0; i < items.length - 1; ++i) {
                    play(items[i]).before(items[i+1]);
                }
            }
        }
    }
//在某个动画之前播放，添加``AFTER``依赖
public Builder before(Animator anim) {
            mReversible = false;
            Node node = mNodeMap.get(anim);
            if (node == null) {
                node = new Node(anim);
                mNodeMap.put(anim, node);
                mNodes.add(node);
            }
            Dependency dependency = new Dependency(mCurrentNode, Dependency.AFTER);
            node.addDependency(dependency);
            return this;
        }

LayoutTransition

ViewGroup布局发生改变时播放动画。这个动画的核心概念是两个类型的改变会引起四种不同的动画运行。这两种改变时appearing和disappearing。

1
2
ViewGroup
setLayoutTransition(LayoutTransition transition)

动画类型，用一个字节表示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186

private static final int FLAG_APPEARING             = 0x01;
    private static final int FLAG_DISAPPEARING          = 0x02;
    private static final int FLAG_CHANGE_APPEARING      = 0x04;
    private static final int FLAG_CHANGE_DISAPPEARING   = 0x08;
    private static final int FLAG_CHANGING              = 0x10;


private int mTransitionTypes = FLAG_CHANGE_APPEARING | FLAG_CHANGE_DISAPPEARING |
            FLAG_APPEARING | FLAG_DISAPPEARING;

private void setupChangeAnimation(final ViewGroup parent, final int changeReason,
            Animator baseAnimator, final long duration, final View child) {

        // If we already have a listener for this child, then we've already set up the
        // changing animation we need. Multiple calls for a child may occur when several
        // add/remove operations are run at once on a container; each one will trigger
        // changes for the existing children in the container.
        if (layoutChangeListenerMap.get(child) != null) {
            return;
        }

        // Don't animate items up from size(0,0); this is likely because the objects
        // were offscreen/invisible or otherwise measured to be infinitely small. We don't
        // want to see them animate into their real size; just ignore animation requests
        // on these views
        if (child.getWidth() == 0 && child.getHeight() == 0) {
            return;
        }

        // Make a copy of the appropriate animation
        final Animator anim = baseAnimator.clone();

        // Set the target object for the animation
        anim.setTarget(child);

        // A ObjectAnimator (or AnimatorSet of them) can extract start values from
        // its target object
        anim.setupStartValues();

        // If there's an animation running on this view already, cancel it
        Animator currentAnimation = pendingAnimations.get(child);
        if (currentAnimation != null) {
            currentAnimation.cancel();
            pendingAnimations.remove(child);
        }
        // Cache the animation in case we need to cancel it later
        pendingAnimations.put(child, anim);

        // For the animations which don't get started, we have to have a means of
        // removing them from the cache, lest we leak them and their target objects.
        // We run an animator for the default duration+100 (an arbitrary time, but one
        // which should far surpass the delay between setting them up here and
        // handling layout events which start them.
        ValueAnimator pendingAnimRemover = ValueAnimator.ofFloat(0f, 1f).
                setDuration(duration + 100);
        pendingAnimRemover.addListener(new AnimatorListenerAdapter() {
            @Override
            public void onAnimationEnd(Animator animation) {
                pendingAnimations.remove(child);
            }
        });
        pendingAnimRemover.start();

        // Add a listener to track layout changes on this view. If we don't get a callback,
        // then there's nothing to animate.
        final View.OnLayoutChangeListener listener = new View.OnLayoutChangeListener() {
            public void onLayoutChange(View v, int left, int top, int right, int bottom,
                    int oldLeft, int oldTop, int oldRight, int oldBottom) {

                // Tell the animation to extract end values from the changed object
                anim.setupEndValues();
                if (anim instanceof ValueAnimator) {
                    boolean valuesDiffer = false;
                    ValueAnimator valueAnim = (ValueAnimator)anim;
                    PropertyValuesHolder[] oldValues = valueAnim.getValues();
                    for (int i = 0; i < oldValues.length; ++i) {
                        PropertyValuesHolder pvh = oldValues[i];
                        if (pvh.mKeyframes instanceof KeyframeSet) {
                            KeyframeSet keyframeSet = (KeyframeSet) pvh.mKeyframes;
                            if (keyframeSet.mFirstKeyframe == null ||
                                    keyframeSet.mLastKeyframe == null ||
                                    !keyframeSet.mFirstKeyframe.getValue().equals(
                                            keyframeSet.mLastKeyframe.getValue())) {
                                valuesDiffer = true;
                            }
                        } else if (!pvh.mKeyframes.getValue(0).equals(pvh.mKeyframes.getValue(1))) {
                            valuesDiffer = true;
                        }
                    }
                    if (!valuesDiffer) {
                        return;
                    }
                }

                long startDelay = 0;
                switch (changeReason) {
                    case APPEARING:
                        startDelay = mChangingAppearingDelay + staggerDelay;
                        staggerDelay += mChangingAppearingStagger;
                        if (mChangingAppearingInterpolator != sChangingAppearingInterpolator) {
                            anim.setInterpolator(mChangingAppearingInterpolator);
                        }
                        break;
                    case DISAPPEARING:
                        startDelay = mChangingDisappearingDelay + staggerDelay;
                        staggerDelay += mChangingDisappearingStagger;
                        if (mChangingDisappearingInterpolator !=
                                sChangingDisappearingInterpolator) {
                            anim.setInterpolator(mChangingDisappearingInterpolator);
                        }
                        break;
                    case CHANGING:
                        startDelay = mChangingDelay + staggerDelay;
                        staggerDelay += mChangingStagger;
                        if (mChangingInterpolator != sChangingInterpolator) {
                            anim.setInterpolator(mChangingInterpolator);
                        }
                        break;
                }
                anim.setStartDelay(startDelay);
                anim.setDuration(duration);

                Animator prevAnimation = currentChangingAnimations.get(child);
                if (prevAnimation != null) {
                    prevAnimation.cancel();
                }
                Animator pendingAnimation = pendingAnimations.get(child);
                if (pendingAnimation != null) {
                    pendingAnimations.remove(child);
                }
                // Cache the animation in case we need to cancel it later
                currentChangingAnimations.put(child, anim);

                parent.requestTransitionStart(LayoutTransition.this);

                // this only removes listeners whose views changed - must clear the
                // other listeners later
                child.removeOnLayoutChangeListener(this);
                layoutChangeListenerMap.remove(child);
            }
        };
        // Remove the animation from the cache when it ends
        anim.addListener(new AnimatorListenerAdapter() {

            @Override
            public void onAnimationStart(Animator animator) {
                if (hasListeners()) {
                    ArrayList<TransitionListener> listeners =
                            (ArrayList<TransitionListener>) mListeners.clone();
                    for (TransitionListener listener : listeners) {
                        listener.startTransition(LayoutTransition.this, parent, child,
                                changeReason == APPEARING ?
                                        CHANGE_APPEARING : changeReason == DISAPPEARING ?
                                        CHANGE_DISAPPEARING : CHANGING);
                    }
                }
            }

            @Override
            public void onAnimationCancel(Animator animator) {
                child.removeOnLayoutChangeListener(listener);
                layoutChangeListenerMap.remove(child);
            }

            @Override
            public void onAnimationEnd(Animator animator) {
                currentChangingAnimations.remove(child);
                if (hasListeners()) {
                    ArrayList<TransitionListener> listeners =
                            (ArrayList<TransitionListener>) mListeners.clone();
                    for (TransitionListener listener : listeners) {
                        listener.endTransition(LayoutTransition.this, parent, child,
                                changeReason == APPEARING ?
                                        CHANGE_APPEARING : changeReason == DISAPPEARING ?
                                        CHANGE_DISAPPEARING : CHANGING);
                    }
                }
            }
        });

        child.addOnLayoutChangeListener(listener);
        // cache the listener for later removal
        layoutChangeListenerMap.put(child, listener);
    }

  • 主要流程
    1. 启动一个延时动画来移除为执行的动画
    2. 监听布局变化,如果是ValueAnimator，判断起始帧和结束帧是否一样，如果一样表示结束.否则根据布局改变的原因设置动画类型，开始动画
    3. 移除缓存动画

ViewPropertyAnimator

自动优化View对象的属性动画。如果想做1个或者两个属性动画，使用ObjectAnimator，其也可以设置属性值，合理的刷新视图。但是如果有多个属性要同时动画，或者想要使用更简洁的语法，那么可以使用ViewPropertyAnimator

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
private void animateProperty(int constantName, float toValue) {
        float fromValue = getValue(constantName);
        float deltaValue = toValue - fromValue;
        animatePropertyBy(constantName, fromValue, deltaValue);
    }

private void animatePropertyBy(int constantName, float startValue, float byValue) {
        // First, cancel any existing animations on this property
        if (mAnimatorMap.size() > 0) {
            Animator animatorToCancel = null;
            Set<Animator> animatorSet = mAnimatorMap.keySet();
            for (Animator runningAnim : animatorSet) {
                PropertyBundle bundle = mAnimatorMap.get(runningAnim);
                if (bundle.cancel(constantName)) {
                    // property was canceled - cancel the animation if it's now empty
                    // Note that it's safe to break out here because every new animation
                    // on a property will cancel a previous animation on that property, so
                    // there can only ever be one such animation running.
                    if (bundle.mPropertyMask == NONE) {
                        // the animation is no longer changing anything - cancel it
                        animatorToCancel = runningAnim;
                        break;
                    }
                }
            }
            if (animatorToCancel != null) {
                animatorToCancel.cancel();
            }
        }

        NameValuesHolder nameValuePair = new NameValuesHolder(constantName, startValue, byValue);
        mPendingAnimations.add(nameValuePair);
        mView.removeCallbacks(mAnimationStarter);
        mView.postOnAnimation(mAnimationStarter);
    }
  • 上述流程, 做属性动画都会调用animateProperty，其内部会调用animatePropertyBy
    1. 首先会取消这个属性上存在的动画
    2. 构建NameValuesHolder
    3. 调用removeCallbacks(runnable)，取消之前动画
    4. 调用postOnAnimation(runnable)，开始动画

Transition

主要用于做转场动画，其会保存场景转变的信息。任何转变有两个主要工作: 1. 捕获属性值 2. 基于捕获的属性值改变做动画。**无法与TextureView和SurfaceView一起使用。对于SurfaceView，由于其是从非UI线程更新UI，因此会造成不同步。对于TextureView，由于转场动画依赖ViewOverlay，而其又无法与TextureView一起工作。

结构图

transition

1
2
3
4
5
6
7
8
9
Transition.java

//捕获开始场景的属性
public abstract void captureStartValues(TransitionValues transitionValues);

//捕获结束场景的属性
public abstract void captureEndValues(TransitionValues transitionValues);


开始转场动画
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
public static void beginDelayedTransition(final ViewGroup sceneRoot, Transition transition) {
        if (!sPendingTransitions.contains(sceneRoot) && sceneRoot.isLaidOut()) {
            if (Transition.DBG) {
                Log.d(LOG_TAG, "beginDelayedTransition: root, transition = " +
                        sceneRoot + ", " + transition);
            }
            sPendingTransitions.add(sceneRoot);
            if (transition == null) {
                transition = sDefaultTransition;//使用默认转场
            }
            final Transition transitionClone = transition.clone();
            sceneChangeSetup(sceneRoot, transitionClone);
            Scene.setCurrentScene(sceneRoot, null);
            sceneChangeRunTransition(sceneRoot, transitionClone);
        }
    }

private static void sceneChangeSetup(ViewGroup sceneRoot, Transition transition) {

        // Capture current values
        ArrayList<Transition> runningTransitions = getRunningTransitions().get(sceneRoot);

        if (runningTransitions != null && runningTransitions.size() > 0) {
            for (Transition runningTransition : runningTransitions) {
                runningTransition.pause(sceneRoot);
            }
        }

        if (transition != null) {
            transition.captureValues(sceneRoot, true);
        }

        // Notify previous scene that it is being exited
        Scene previousScene = Scene.getCurrentScene(sceneRoot);
        if (previousScene != null) {
            previousScene.exit();
        }
}

private static void sceneChangeRunTransition(final ViewGroup sceneRoot,
            final Transition transition) {
        if (transition != null && sceneRoot != null) {
            MultiListener listener = new MultiListener(transition, sceneRoot);
            sceneRoot.addOnAttachStateChangeListener(listener);
            //设置绘制前监听
            sceneRoot.getViewTreeObserver().addOnPreDrawListener(listener);
        }
}
  • 流程
    1. 未设置Transition，使用默认Transition，也就是AutoTransition
    2. 暂停当前正在运行的转场动画，捕获当前场景，取消之前的转场动画
    3. 设置当前场景
    4. 设置绘制(preDraw)监听，在其当中捕获场景和开始转场动画
AutoTransition

组合转场动画，包括渐变和区域改变。Transition由TransitionManger管理。一般可以使用beginDelayedTransition开始一个转场动画，默认的转场动画为AutoTransition:

1
2
3
TransitionManager.beginDelayedTransition(transitionGroup);

textView.setVisibility(visible ? View.VISIBLE : View.GONE);

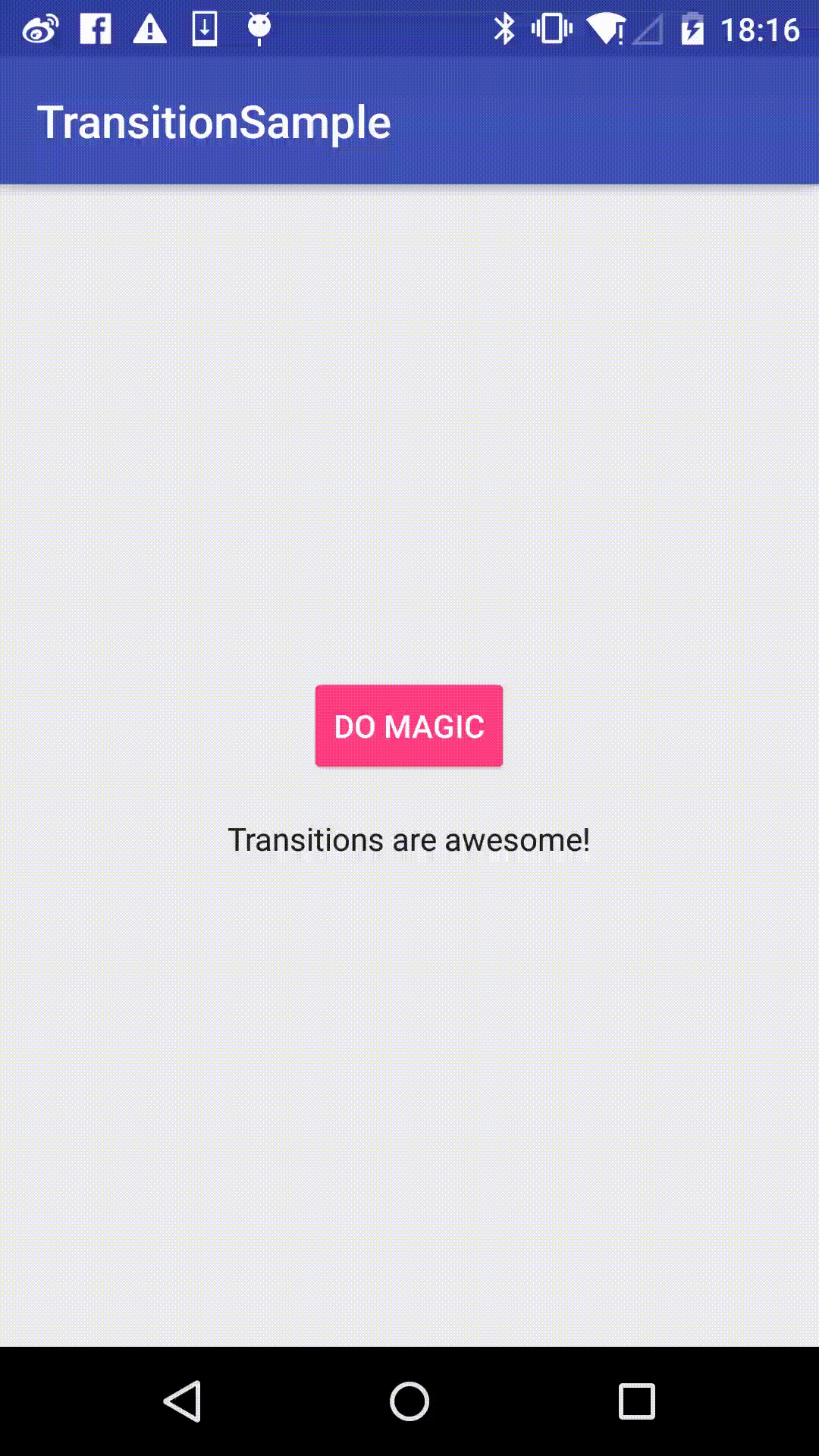

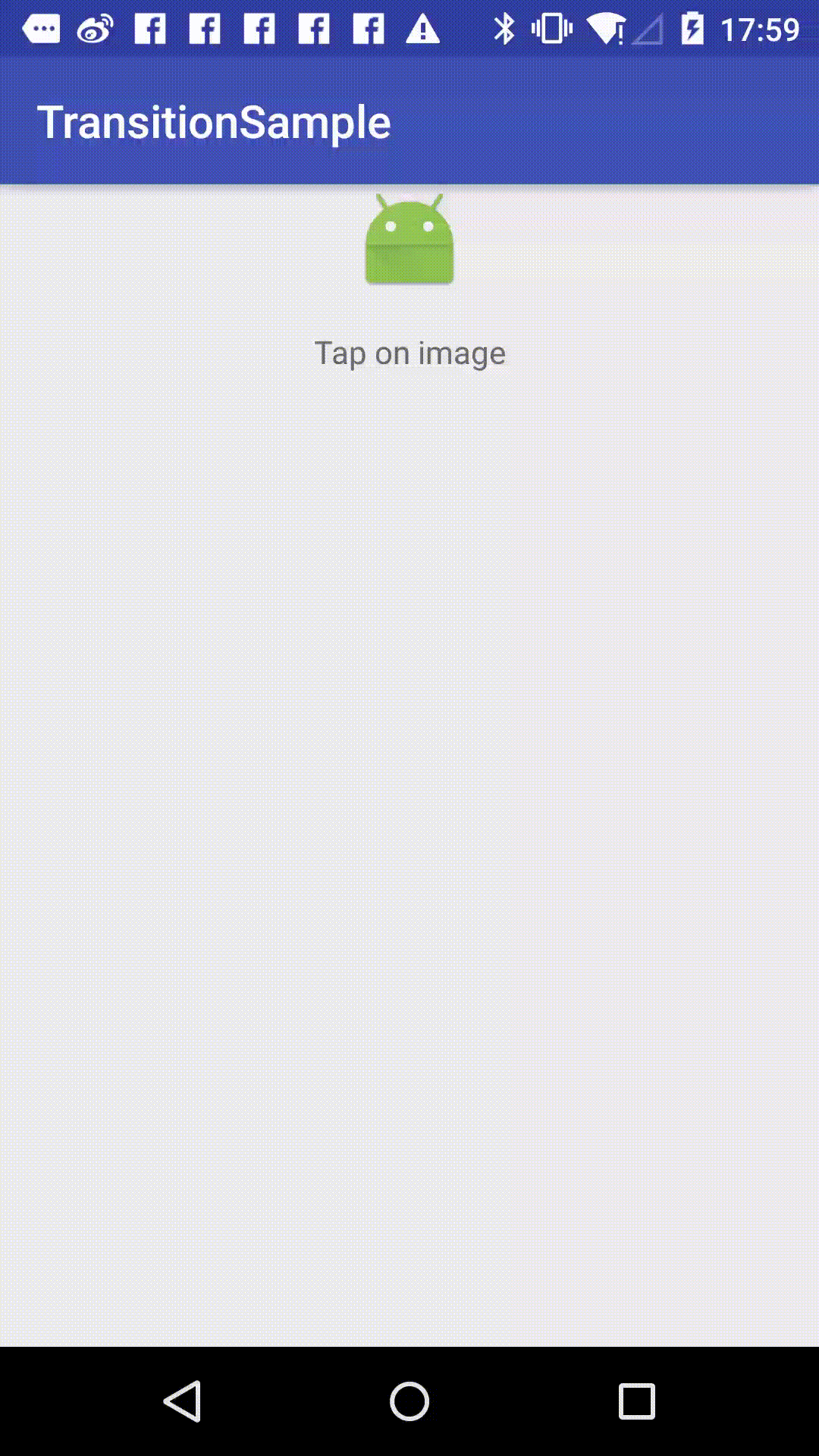

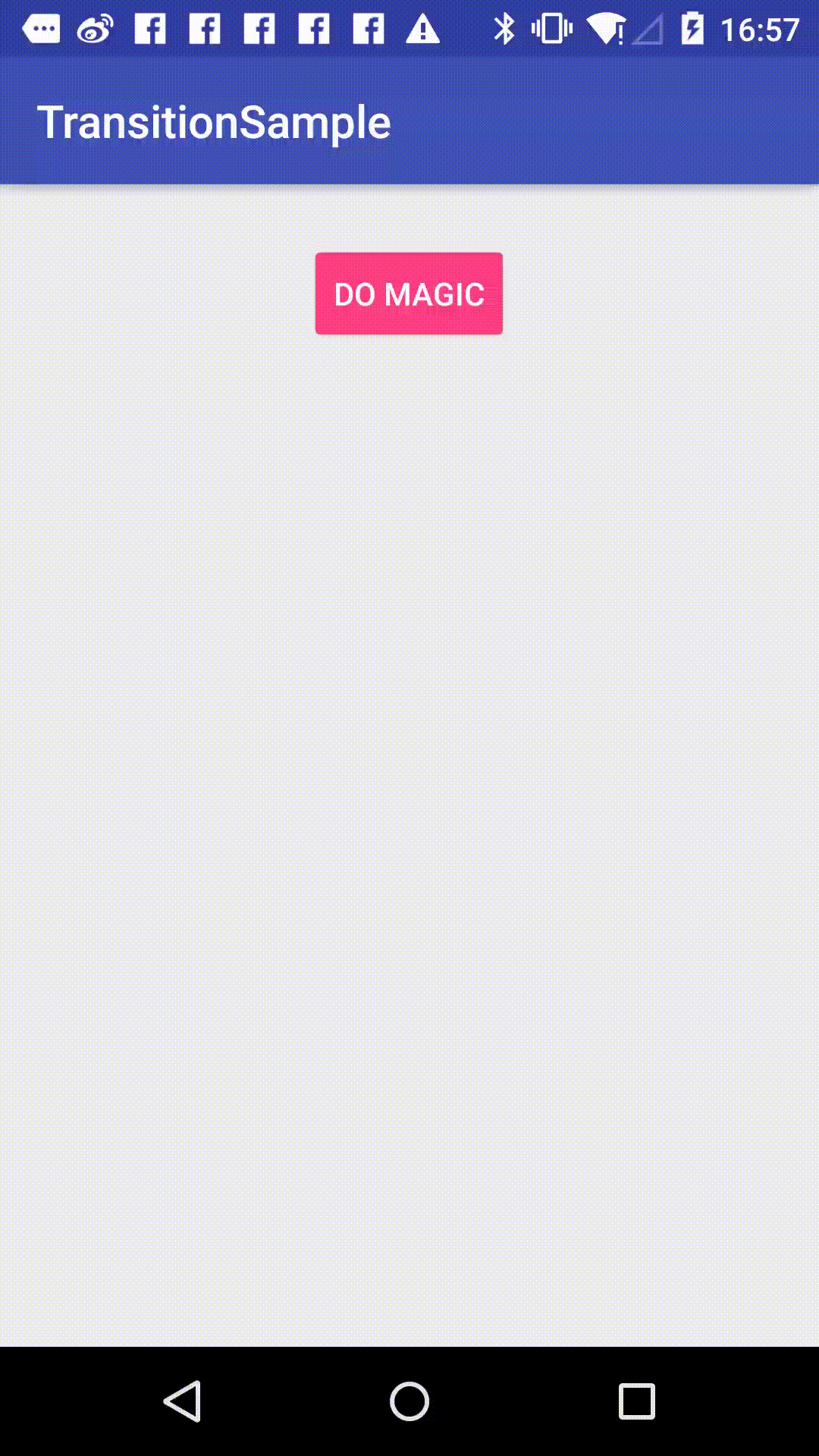

效果如下:

autotransition
源码分析

继承自TransitionSet

1
2
3
4
5
6
private void init() {
        setOrdering(ORDERING_SEQUENTIAL);
        addTransition(new Fade(Fade.OUT)).
                addTransition(new ChangeBounds()).
                addTransition(new Fade(Fade.IN));
    }
  • 顺序播放渐出，区域变化，渐入动画
TransitionSet

继承自Transition

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@Override
    public void captureStartValues(TransitionValues transitionValues) {
        if (isValidTarget(transitionValues.view)) {
            for (Transition childTransition : mTransitions) {
                if (childTransition.isValidTarget(transitionValues.view)) {
                    childTransition.captureStartValues(transitionValues);
                    transitionValues.targetedTransitions.add(childTransition);
                }
            }
        }
}

@Override
    public void captureEndValues(TransitionValues transitionValues) {
        if (isValidTarget(transitionValues.view)) {
            for (Transition childTransition : mTransitions) {
                if (childTransition.isValidTarget(transitionValues.view)) {
                    childTransition.captureEndValues(transitionValues);
                    transitionValues.targetedTransitions.add(childTransition);
                }
            }
        }
    }
  • 调用各个Transition的方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
protected void createAnimators(ViewGroup sceneRoot, TransitionValuesMaps startValues,
            TransitionValuesMaps endValues, ArrayList<TransitionValues> startValuesList,
            ArrayList<TransitionValues> endValuesList) {
        long startDelay = getStartDelay();
        int numTransitions = mTransitions.size();
        for (int i = 0; i < numTransitions; i++) {
            Transition childTransition = mTransitions.get(i);
            // We only set the start delay on the first transition if we are playing
            // the transitions sequentially.
            if (startDelay > 0 && (mPlayTogether || i == 0)) {
                long childStartDelay = childTransition.getStartDelay();
                if (childStartDelay > 0) {
                    childTransition.setStartDelay(startDelay + childStartDelay);
                } else {
                    childTransition.setStartDelay(startDelay);
                }
            }
            childTransition.createAnimators(sceneRoot, startValues, endValues, startValuesList,
                    endValuesList);
        }
    }
  • 使用各自Transition创建动画。为第一个转场动画设置必要的延时
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
@Override
    protected void runAnimators() {
        if (mTransitions.isEmpty()) {
            start();
            end();
            return;
        }
        setupStartEndListeners();
        int numTransitions = mTransitions.size();
        if (!mPlayTogether) {
        //串行播放动画
            // Setup sequence with listeners
            // TODO: Need to add listeners in such a way that we can remove them later if canceled
            for (int i = 1; i < numTransitions; ++i) {
                Transition previousTransition = mTransitions.get(i - 1);
                final Transition nextTransition = mTransitions.get(i);
                previousTransition.addListener(new TransitionListenerAdapter() {
                    @Override
                    public void onTransitionEnd(Transition transition) {
                        nextTransition.runAnimators();
                        transition.removeListener(this);
                    }
                });
            }
            Transition firstTransition = mTransitions.get(0);
            if (firstTransition != null) {
                firstTransition.runAnimators();
            }
        } else {
        //并行播放动画
            for (int i = 0; i < numTransitions; ++i) {
                mTransitions.get(i).runAnimators();
            }
        }
    }
  • 动画开始，由各个Transition开始动画，在这里会区分动画是串行播放，还是并行播放。
ChangeText(自定义transition)

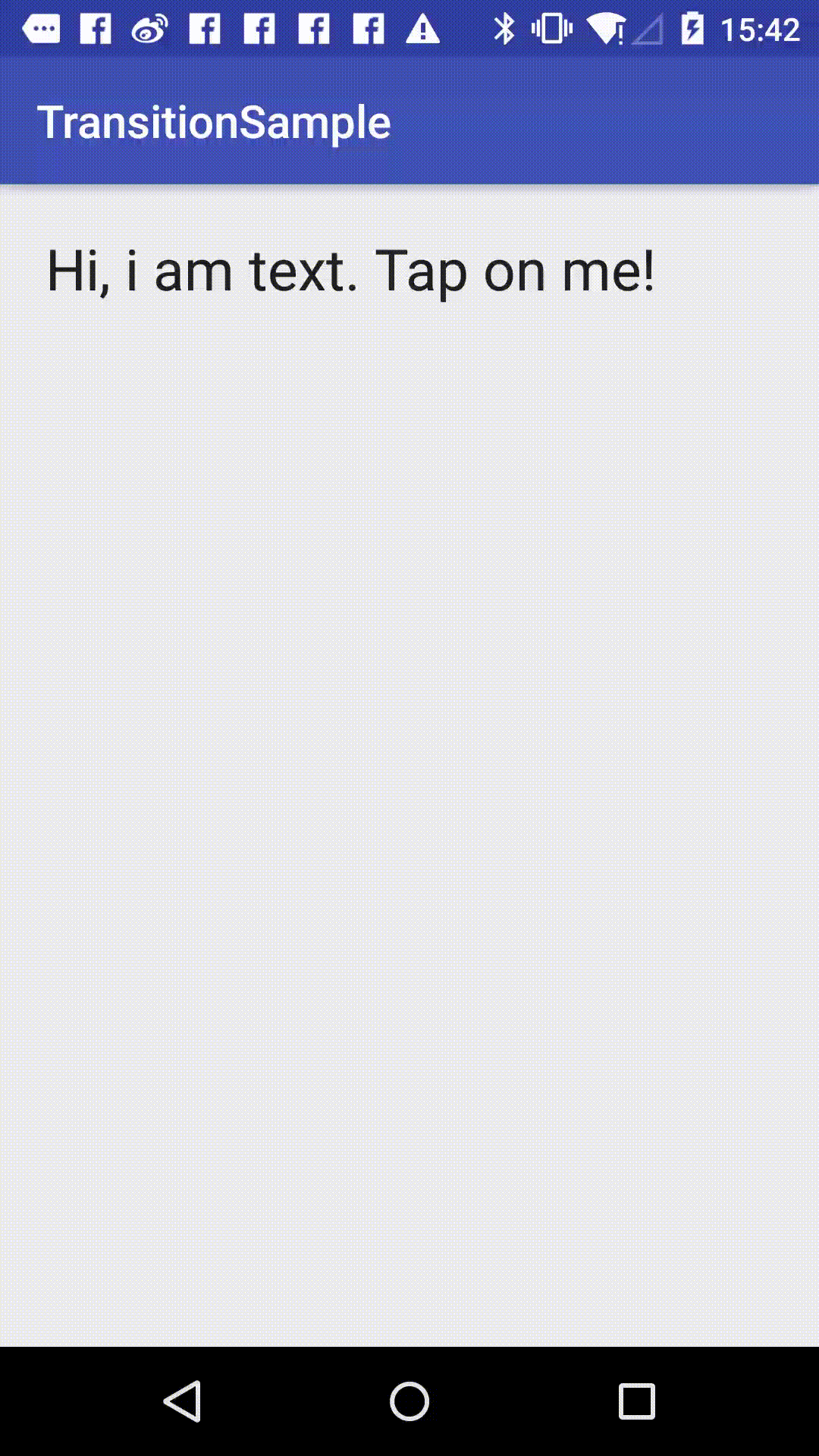

autotransition
1
2
3
4
5
6
7
textView.animate().alpha(0f).setListener(new AnimatorListenerAdapter() {
                   @Override public void onAnimationEnd(Animator animation) {
                       textView.setText(mSecondText ? TEXT_2 : TEXT_1);
                       textView.animate().setListener(null);
                       textView.animate().alpha(1f).start();
                   }
               }).start();
  • 上述代码也能实现相同的功能，ChangeText只是对其进行了进一步的封装。这里不分析其源码
ChangeBound

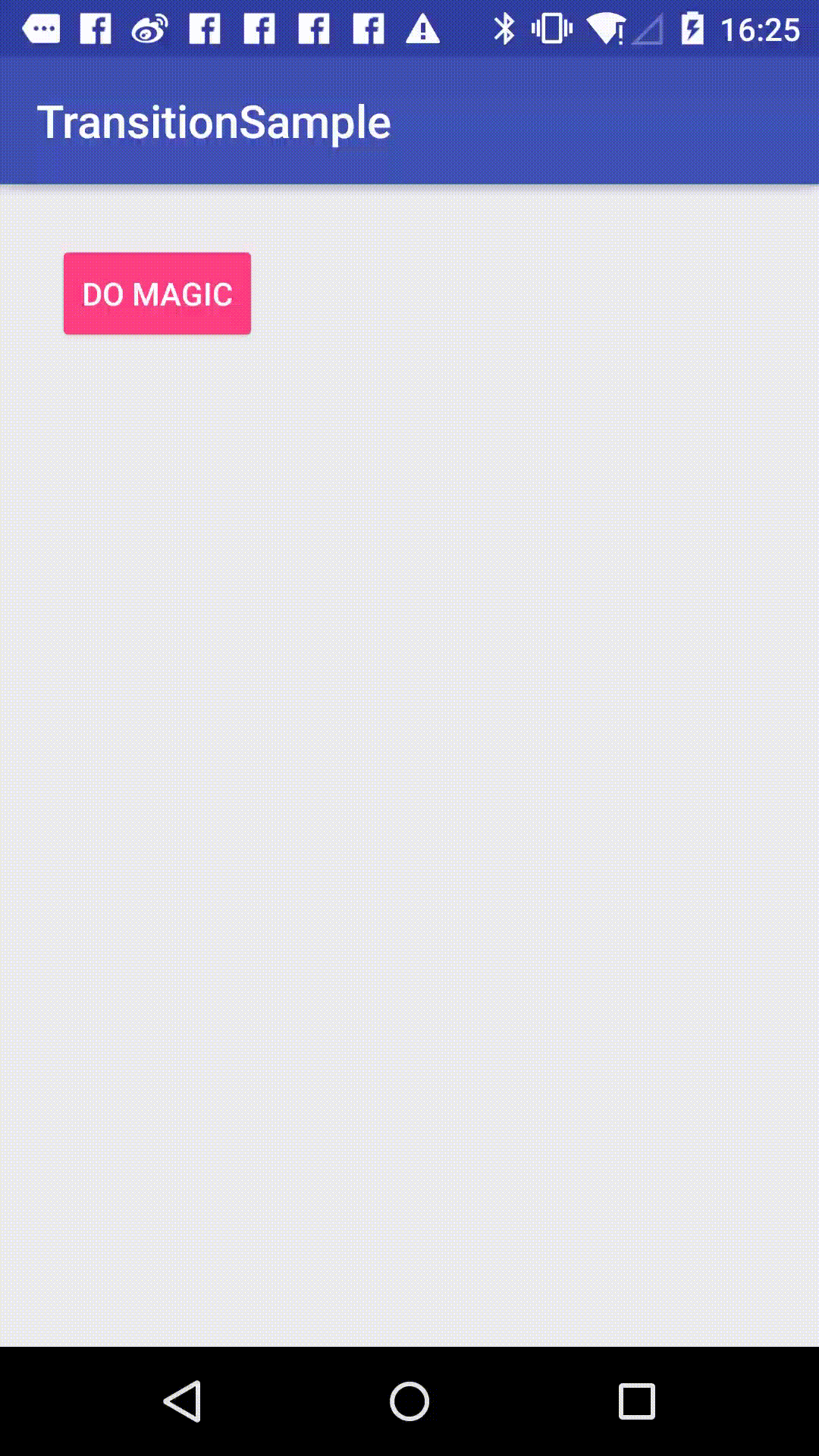

autotransition
源码分析

继承Transition

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
private void captureValues(TransitionValues values) {
        View view = values.view;

        if (view.isLaidOut() || view.getWidth() != 0 || view.getHeight() != 0) {
        //view已经布局完毕，保存当前view边界状态
            values.values.put(PROPNAME_BOUNDS, new Rect(view.getLeft(), view.getTop(),
                    view.getRight(), view.getBottom()));
            values.values.put(PROPNAME_PARENT, values.view.getParent());
            if (mReparent) {
            //如果动画scene的parent一样，记录当前屏幕位置
                values.view.getLocationInWindow(tempLocation);
                values.values.put(PROPNAME_WINDOW_X, tempLocation[0]);
                values.values.put(PROPNAME_WINDOW_Y, tempLocation[1]);
            }
            if (mResizeClip) {
                values.values.put(PROPNAME_CLIP, view.getClipBounds());
            }
        }
    }
  • 保存当前View的边界状态

创建动画，代码很长，核心代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
if (numChanges > 0) {
                Animator anim;
                if (!mResizeClip) {
                    view.setLeftTopRightBottom(startLeft, startTop, startRight, startBottom);
                    if (numChanges == 2) {
                        if (startWidth == endWidth && startHeight == endHeight) {
                            Path topLeftPath = getPathMotion().getPath(startLeft, startTop, endLeft,
                                    endTop);
                            anim = ObjectAnimator.ofObject(view, POSITION_PROPERTY, null,
                                    topLeftPath);
                        } else {
                            final ViewBounds viewBounds = new ViewBounds(view);
                            Path topLeftPath = getPathMotion().getPath(startLeft, startTop,
                                    endLeft, endTop);
                            ObjectAnimator topLeftAnimator = ObjectAnimator
                                    .ofObject(viewBounds, TOP_LEFT_PROPERTY, null, topLeftPath);

                            Path bottomRightPath = getPathMotion().getPath(startRight, startBottom,
                                    endRight, endBottom);
                            ObjectAnimator bottomRightAnimator = ObjectAnimator.ofObject(viewBounds,
                                    BOTTOM_RIGHT_PROPERTY, null, bottomRightPath);
                            AnimatorSet set = new AnimatorSet();
                            set.playTogether(topLeftAnimator, bottomRightAnimator);
                            anim = set;
                            set.addListener(new AnimatorListenerAdapter() {
                                // We need a strong reference to viewBounds until the
                                // animator ends.
                                private ViewBounds mViewBounds = viewBounds;
                            });
                        }
                    } else if (startLeft != endLeft || startTop != endTop) {
                        Path topLeftPath = getPathMotion().getPath(startLeft, startTop,
                                endLeft, endTop);
                        anim = ObjectAnimator.ofObject(view, TOP_LEFT_ONLY_PROPERTY, null,
                                topLeftPath);
                    } else {
                        Path bottomRight = getPathMotion().getPath(startRight, startBottom,
                                endRight, endBottom);
                        anim = ObjectAnimator.ofObject(view, BOTTOM_RIGHT_ONLY_PROPERTY, null,
                                bottomRight);
                    }
                } else {
                    int maxWidth = Math.max(startWidth, endWidth);
                    int maxHeight = Math.max(startHeight, endHeight);

                    view.setLeftTopRightBottom(startLeft, startTop, startLeft + maxWidth,
                            startTop + maxHeight);

                    ObjectAnimator positionAnimator = null;
                    if (startLeft != endLeft || startTop != endTop) {
                        Path topLeftPath = getPathMotion().getPath(startLeft, startTop, endLeft,
                                endTop);
                        positionAnimator = ObjectAnimator.ofObject(view, POSITION_PROPERTY, null,
                                topLeftPath);
                    }
                    final Rect finalClip = endClip;
                    if (startClip == null) {
                        startClip = new Rect(0, 0, startWidth, startHeight);
                    }
                    if (endClip == null) {
                        endClip = new Rect(0, 0, endWidth, endHeight);
                    }
                    ObjectAnimator clipAnimator = null;
                    if (!startClip.equals(endClip)) {
                        view.setClipBounds(startClip);
                        clipAnimator = ObjectAnimator.ofObject(view, "clipBounds", sRectEvaluator,
                                startClip, endClip);
                        clipAnimator.addListener(new AnimatorListenerAdapter() {
                            private boolean mIsCanceled;

                            @Override
                            public void onAnimationCancel(Animator animation) {
                                mIsCanceled = true;
                            }

                            @Override
                            public void onAnimationEnd(Animator animation) {
                                if (!mIsCanceled) {
                                    view.setClipBounds(finalClip);
                                    view.setLeftTopRightBottom(endLeft, endTop, endRight,
                                            endBottom);
                                }
                            }
                        });
                    }
                    anim = TransitionUtils.mergeAnimators(positionAnimator,
                            clipAnimator);
                }
                if (view.getParent() instanceof ViewGroup) {
                    final ViewGroup parent = (ViewGroup) view.getParent();
                    parent.suppressLayout(true);
                    TransitionListener transitionListener = new TransitionListenerAdapter() {
                        boolean mCanceled = false;

                        @Override
                        public void onTransitionCancel(Transition transition) {
                            parent.suppressLayout(false);
                            mCanceled = true;
                        }

                        @Override
                        public void onTransitionEnd(Transition transition) {
                            if (!mCanceled) {
                                parent.suppressLayout(false);
                            }
                        }

                        @Override
                        public void onTransitionPause(Transition transition) {
                            parent.suppressLayout(false);
                        }

                        @Override
                        public void onTransitionResume(Transition transition) {
                            parent.suppressLayout(true);
                        }
                    };
                    addListener(transitionListener);
                }
                return anim;
            }
        } else {
            sceneRoot.getLocationInWindow(tempLocation);
            int startX = (Integer) startValues.values.get(PROPNAME_WINDOW_X) - tempLocation[0];
            int startY = (Integer) startValues.values.get(PROPNAME_WINDOW_Y) - tempLocation[1];
            int endX = (Integer) endValues.values.get(PROPNAME_WINDOW_X) - tempLocation[0];
            int endY = (Integer) endValues.values.get(PROPNAME_WINDOW_Y) - tempLocation[1];
            // TODO: also handle size changes: check bounds and animate size changes
            if (startX != endX || startY != endY) {
                final int width = view.getWidth();
                final int height = view.getHeight();
                Bitmap bitmap = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888);
                Canvas canvas = new Canvas(bitmap);
                view.draw(canvas);
                final BitmapDrawable drawable = new BitmapDrawable(bitmap);
                drawable.setBounds(startX, startY, startX + width, startY + height);
                final float transitionAlpha = view.getTransitionAlpha();
                view.setTransitionAlpha(0);
                sceneRoot.getOverlay().add(drawable);
                Path topLeftPath = getPathMotion().getPath(startX, startY, endX, endY);
                PropertyValuesHolder origin = PropertyValuesHolder.ofObject(
                        DRAWABLE_ORIGIN_PROPERTY, null, topLeftPath);
                ObjectAnimator anim = ObjectAnimator.ofPropertyValuesHolder(drawable, origin);
                anim.addListener(new AnimatorListenerAdapter() {
                    @Override
                    public void onAnimationEnd(Animator animation) {
                        sceneRoot.getOverlay().remove(drawable);
                        view.setTransitionAlpha(transitionAlpha);
                    }
                });
                return anim;
            }
        }
  • 主要功能是判断View的边界有没有发生改变，如果发生改变，使用对应的位置变化动画，主要包括topLeft, bottomRight, position。如果没有发生改变，则在View上绘制Overlay并对其做path动画。

设置pathMotion

其是一个抽象类，用于描述Transition的Path信息

autotransition
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public abstract class PathMotion {

    public PathMotion() {}

    public PathMotion(Context context, AttributeSet attrs) {}

    /**
     * Provide a Path to interpolate between two points <code>(startX, startY)</code> and
     * <code>(endX, endY)</code>. This allows controlled curved motion along two dimensions.
     *
     * @param startX The x coordinate of the starting point.
     * @param startY The y coordinate of the starting point.
     * @param endX   The x coordinate of the ending point.
     * @param endY   The y coordinate of the ending point.
     * @return A Path along which the points should be interpolated. The returned Path
     * must start at point <code>(startX, startY)</code>, typically using
     * {@link android.graphics.Path#moveTo(float, float)} and end at <code>(endX, endY)</code>.
     */
    public abstract Path getPath(float startX, float startY, float endX, float endY);
}
  • 实现getPath以便提供两点之间的变化频率
Slide

继承自Visibility

autotransition
源码分析
1
2
3
4
5
6
private void captureValues(TransitionValues transitionValues) {
        View view = transitionValues.view;
        int[] position = new int[2];
        view.getLocationOnScreen(position);
        transitionValues.values.put(PROPNAME_SCREEN_POSITION, position);
    }
  • 保存当前View位置

其createAnimator在父类Visibility中被重写，当中调用onAppear和onDisappear，这两个方法分别有各自的重载方法，由子类提供具体的实现，默认无动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Override
    public Animator onAppear(ViewGroup sceneRoot, View view,
            TransitionValues startValues, TransitionValues endValues) {
        if (endValues == null) {
            return null;
        }
        int[] position = (int[]) endValues.values.get(PROPNAME_SCREEN_POSITION);
        float endX = view.getTranslationX();
        float endY = view.getTranslationY();
        float startX = mSlideCalculator.getGoneX(sceneRoot, view);
        float startY = mSlideCalculator.getGoneY(sceneRoot, view);
        return TranslationAnimationCreator
                .createAnimation(view, endValues, position[0], position[1],
                        startX, startY, endX, endY, sDecelerate, this);
    }
  • 使用CalculateSlide接口的实现计算View离开或者进入场景时的位置，最后由TranslationAnimationCreator创建动画
Scale
autotransition

设置alpha

autotransition
源码分析

private Animator createAnimation(final View view, float startScale, float endScale, TransitionValues values) {
final float initialScaleX = view.getScaleX();
final float initialScaleY = view.getScaleY();
float startScaleX = initialScaleX * startScale;
float endScaleX = initialScaleX * endScale;
float startScaleY = initialScaleY * startScale;
float endScaleY = initialScaleY * endScale;

    if (values != null) {
        Float savedScaleX = (Float) values.values.get(PROPNAME_SCALE_X);
        Float savedScaleY = (Float) values.values.get(PROPNAME_SCALE_Y);
        // if saved value is not equal initial value it means that previous
        // transition was interrupted and in the onTransitionEnd
        // we've applied endScale. we should apply proper value to
        // continue animation from the interrupted state
        if (savedScaleX != null && savedScaleX != initialScaleX) {
            startScaleX = savedScaleX;
        }
        if (savedScaleY != null && savedScaleY != initialScaleY) {
            startScaleY = savedScaleY;
        }
    }

    view.setScaleX(startScaleX);
    view.setScaleY(startScaleY);

    Animator animator = TransitionUtils.mergeAnimators(
            ObjectAnimator.ofFloat(view, View.SCALE_X, startScaleX, endScaleX),
            ObjectAnimator.ofFloat(view, View.SCALE_Y, startScaleY, endScaleY));
    addListener(new TransitionListenerAdapter() {
        @Override
        public void onTransitionEnd(Transition transition) {
            view.setScaleX(initialScaleX);
            view.setScaleY(initialScaleY);
        }
    });
    return animator;

}

  • 合并x, y缩放的动画，合并是采用TransitionSet，如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public static Transition mergeTransitions(Transition... transitions) {
        int count = 0;
        int nonNullIndex = -1;
        for (int i = 0; i < transitions.length; i++) {
            if (transitions[i] != null) {
                count++;
                nonNullIndex = i;
            }
        }

        if (count == 0) {
            return null;
        }

        if (count == 1) {
            return transitions[nonNullIndex];
        }

        TransitionSet transitionSet = new TransitionSet();
        for (int i = 0; i < transitions.length; i++) {
            if (transitions[i] != null) {
                transitionSet.addTransition(transitions[i]);
            }
        }
        return transitionSet;
    }
Explode

继承自Visibility

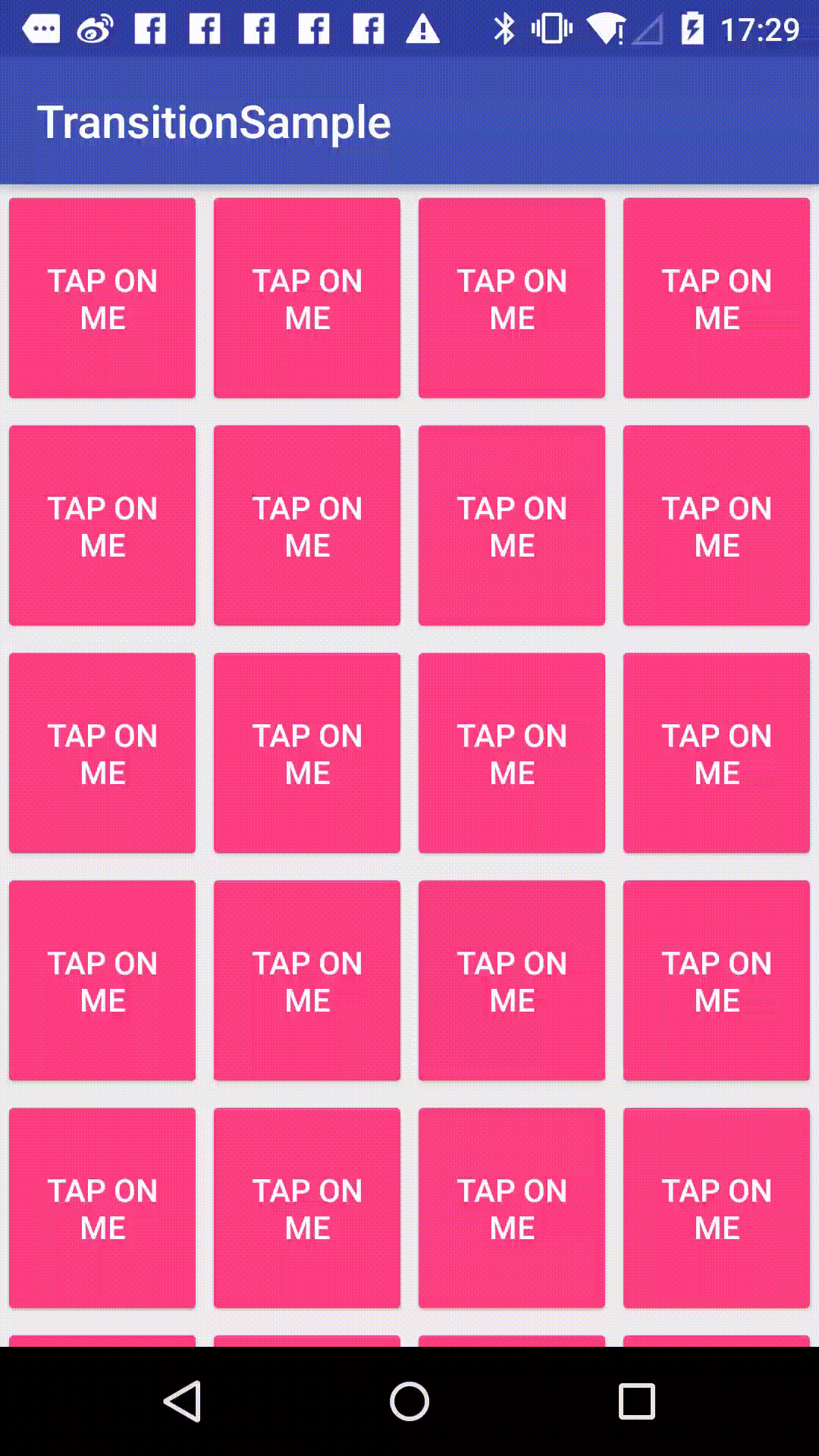

autotransition
源码分析
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Override
    public Animator onAppear(ViewGroup sceneRoot, View view,
            TransitionValues startValues, TransitionValues endValues) {
        if (endValues == null) {
            return null;
        }
        Rect bounds = (Rect) endValues.values.get(PROPNAME_SCREEN_BOUNDS);
        float endX = view.getTranslationX();
        float endY = view.getTranslationY();
        calculateOut(sceneRoot, bounds, mTempLoc);
        float startX = endX + mTempLoc[0];
        float startY = endY + mTempLoc[1];

        return TranslationAnimationCreator.createAnimation(view, endValues, bounds.left, bounds.top,
                startX, startY, endX, endY, sDecelerate, this);
    }
  • 通过calculateOut计算扩散的距离，使用TranslationAnimationCreator创建动画
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
private void calculateOut(View sceneRoot, Rect bounds, int[] outVector) {
        sceneRoot.getLocationOnScreen(mTempLoc);
        int sceneRootX = mTempLoc[0];
        int sceneRootY = mTempLoc[1];
        int focalX;
        int focalY;

        Rect epicenter = getEpicenter();
        if (epicenter == null) {
            focalX = sceneRootX + (sceneRoot.getWidth() / 2)
                    + Math.round(sceneRoot.getTranslationX());
            focalY = sceneRootY + (sceneRoot.getHeight() / 2)
                    + Math.round(sceneRoot.getTranslationY());
        } else {
            focalX = epicenter.centerX();
            focalY = epicenter.centerY();
        }

        int centerX = bounds.centerX();
        int centerY = bounds.centerY();
        double xVector = centerX - focalX;
        double yVector = centerY - focalY;

        if (xVector == 0 && yVector == 0) {
            // Random direction when View is centered on focal View.
            xVector = (Math.random() * 2) - 1;
            yVector = (Math.random() * 2) - 1;
        }
        double vectorSize = Math.hypot(xVector, yVector);
        xVector /= vectorSize;
        yVector /= vectorSize;

        double maxDistance =
                calculateMaxDistance(sceneRoot, focalX - sceneRootX, focalY - sceneRootY);

        outVector[0] = (int) Math.round(maxDistance * xVector);
        outVector[1] = (int) Math.round(maxDistance * yVector);
    }
  • 计算场景动画的偏移量，如果为0，随机算出偏移量，算出x, y偏移量的平方根，求出最大距离
    TransitionName

设置要做动画的标识，在之后的动画中会对这些标识的View做动画

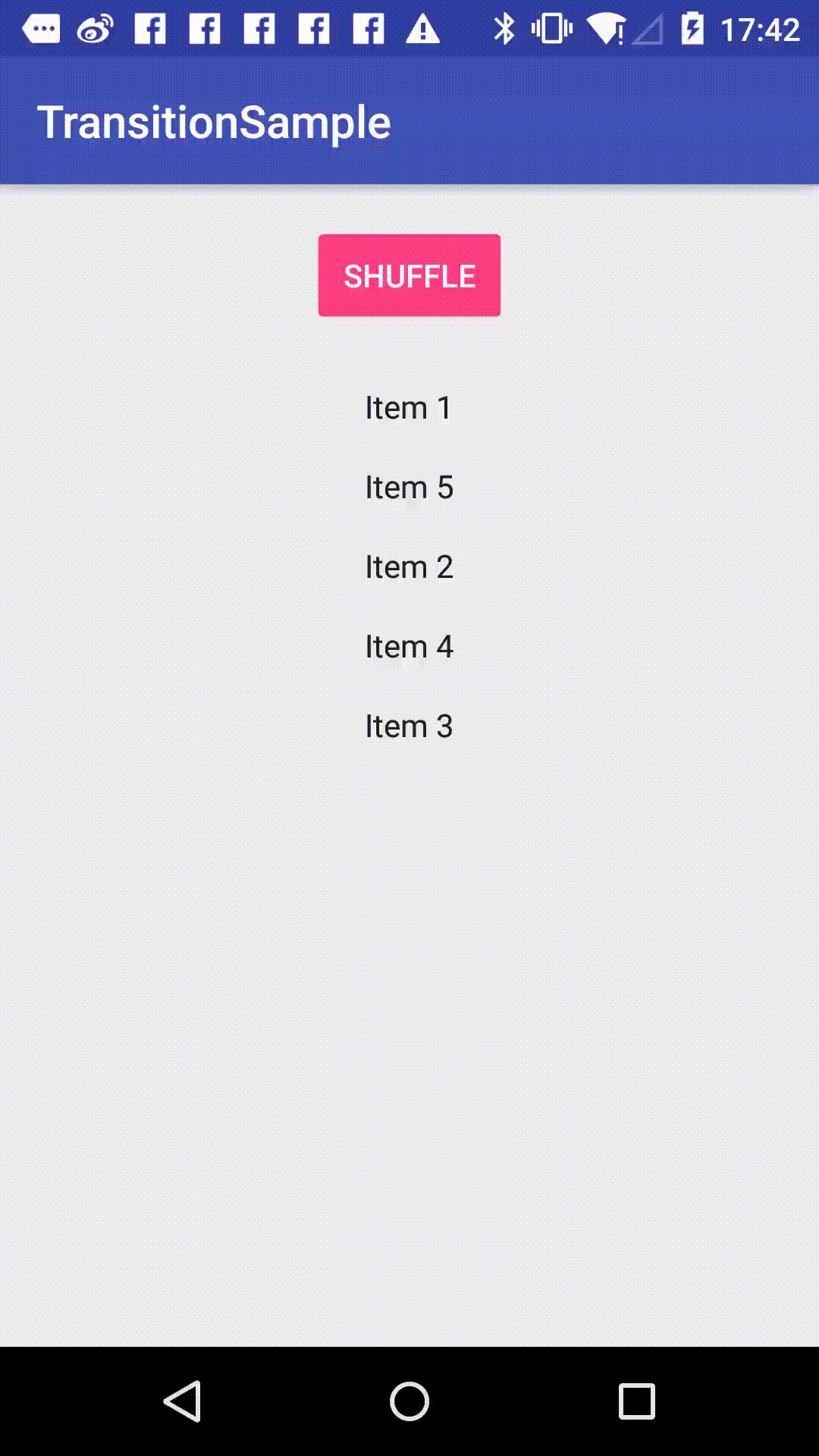

autotransition
ImageTransform
autotransition
ReColor

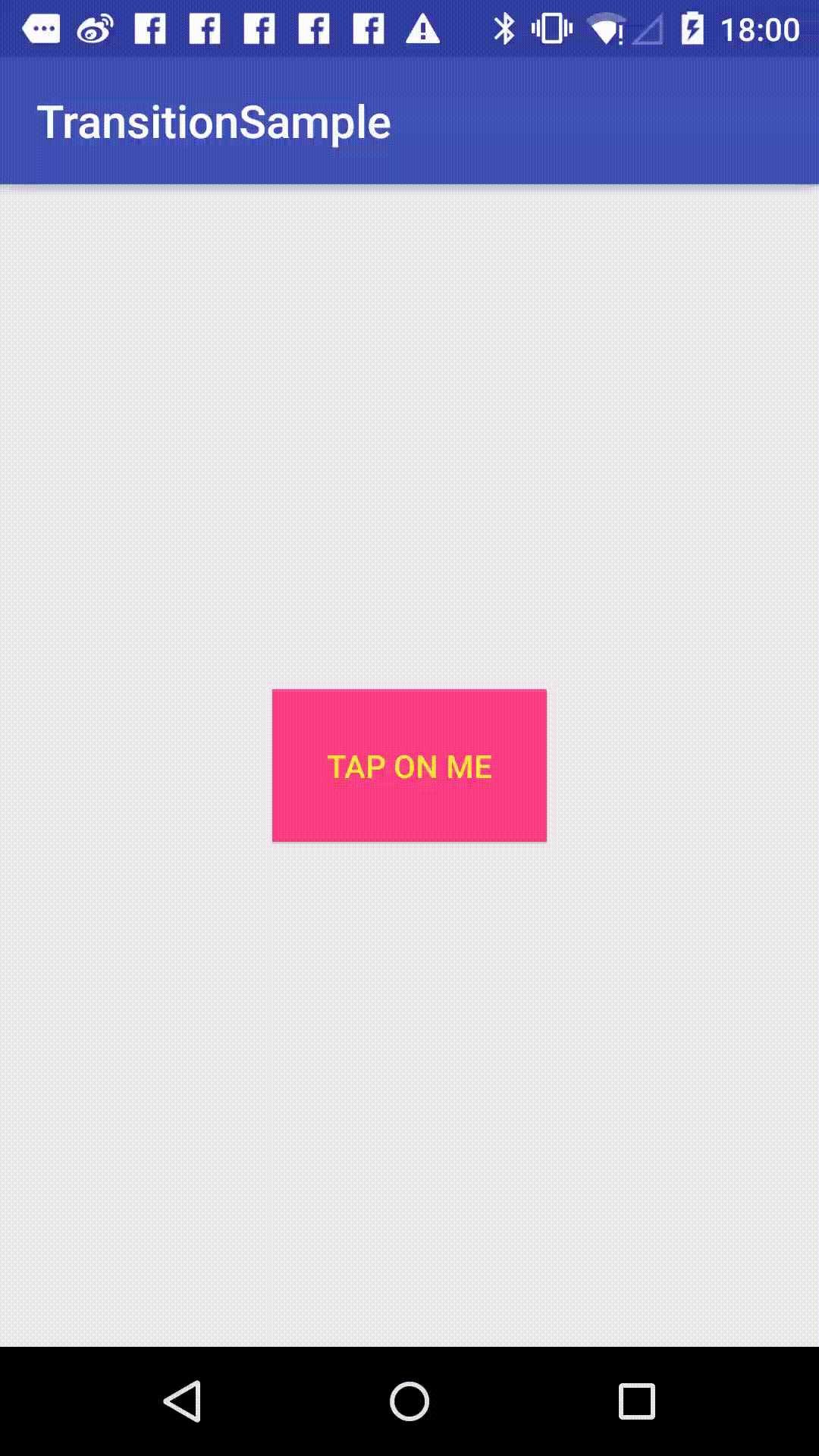

autotransition
Rotate

继承自Transition的旋转动画

autotransition
源码分析
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public Animator createAnimator(ViewGroup sceneRoot, TransitionValues startValues,
            TransitionValues endValues) {
        if (startValues == null || endValues == null) {
            return null;
        }
        final View view = endValues.view;
        float startRotation = (Float) startValues.values.get(PROPNAME_ROTATION);
        float endRotation = (Float) endValues.values.get(PROPNAME_ROTATION);
        if (startRotation != endRotation) {
            view.setRotation(startRotation);
            return ObjectAnimator.ofFloat(view, View.ROTATION,
                    startRotation, endRotation);
        }
        return null;
    }
  • 创建旋转动画
Progress

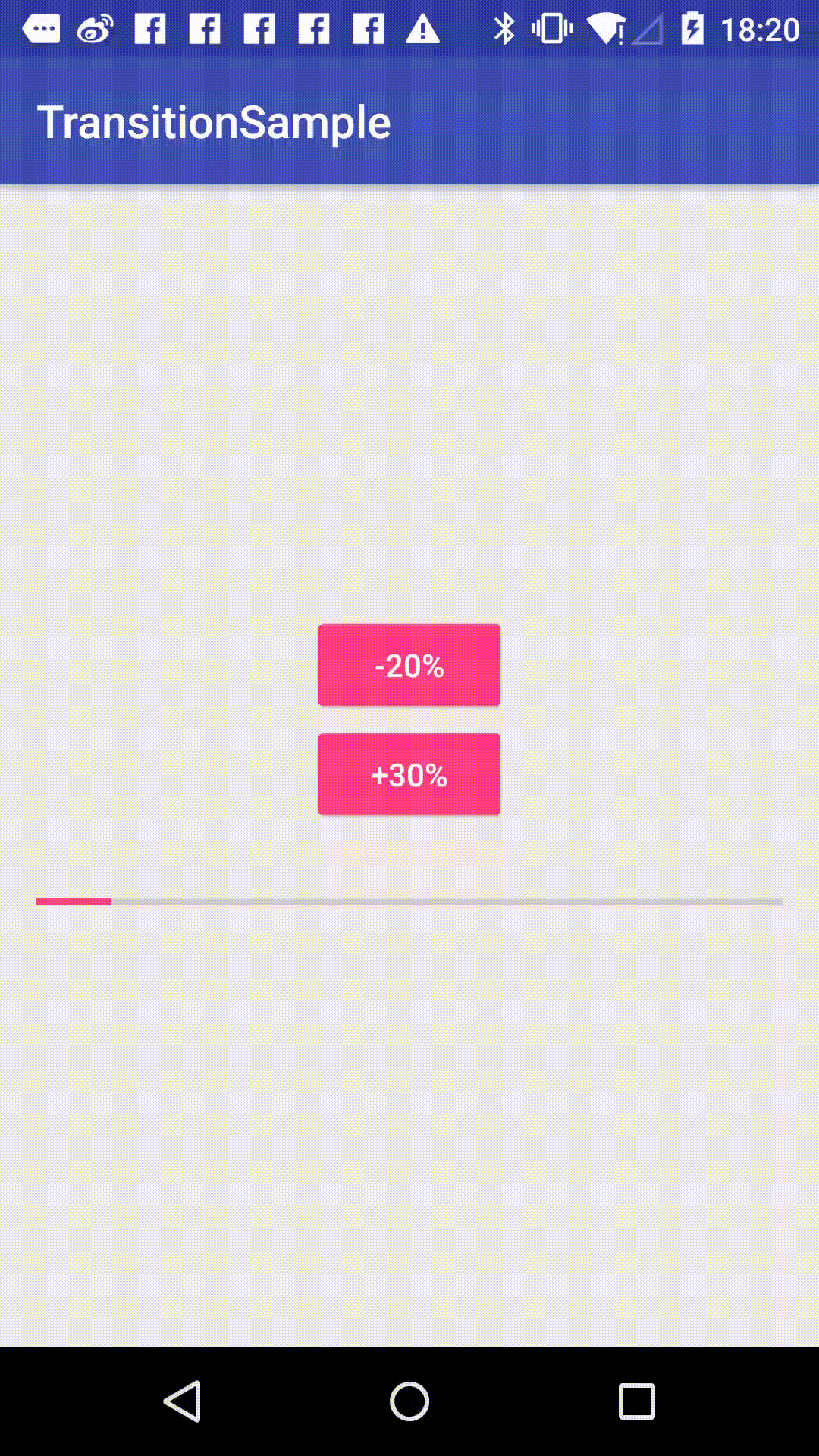

autotransition
Change Scene

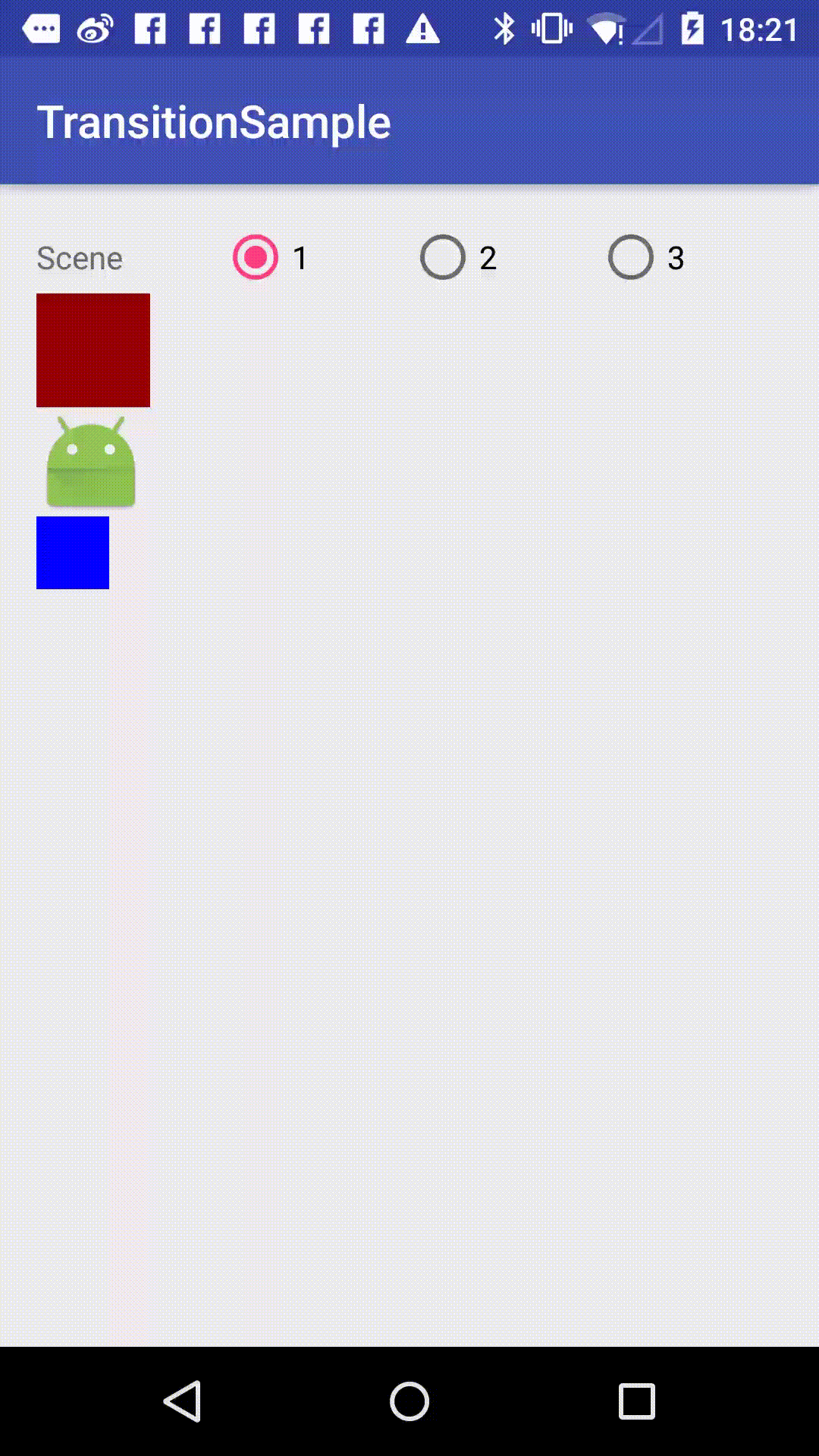

autotransition
源码分析
1
2
3
4
5
6
private void init() {
        setOrdering(ORDERING_SEQUENTIAL);
        addTransition(new Fade(Fade.OUT)).
                addTransition(new ChangeBounds()).
                addTransition(new Fade(Fade.IN));
}
  • 先淡出效果(Fade)，改变区域(ChangeBound)，淡入效果(Fade)
Fade

渐变转场动画，继承自Visibility

1
2
3
4
5
public void captureStartValues(TransitionValues transitionValues) {
        super.captureStartValues(transitionValues);
        transitionValues.values.put(PROPNAME_TRANSITION_ALPHA,
                transitionValues.view.getTransitionAlpha());
}
  • 捕获初始场景的alpha值
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
private Animator createAnimation(final View view, float startAlpha, final float endAlpha) {
        if (startAlpha == endAlpha) {
            return null;
        }
        view.setTransitionAlpha(startAlpha);
        //创建渐变属性动画
        final ObjectAnimator anim = ObjectAnimator.ofFloat(view, "transitionAlpha", endAlpha);
        if (DBG) {
            Log.d(LOG_TAG, "Created animator " + anim);
        }
        final FadeAnimatorListener listener = new FadeAnimatorListener(view);
        anim.addListener(listener);
        anim.addPauseListener(listener);
        addListener(new TransitionListenerAdapter() {
            @Override
            public void onTransitionEnd(Transition transition) {
                view.setTransitionAlpha(1);
            }
        });
        return anim;
    }
  • 创建渐变属性动画，其会由onAppear()和onDisAppear调用
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Override
    public Animator onAppear(ViewGroup sceneRoot, View view,
            TransitionValues startValues,
            TransitionValues endValues) {
        if (DBG) {
            View startView = (startValues != null) ? startValues.view : null;
            Log.d(LOG_TAG, "Fade.onAppear: startView, startVis, endView, endVis = " +
                    startView + ", " + view);
        }
        //创建渐入动画
        return createAnimation(view, 0, 1);
    }

    @Override
    public Animator onDisappear(ViewGroup sceneRoot, final View view, TransitionValues startValues,
            TransitionValues endValues) {
            //创建渐出动画
        return createAnimation(view, 1, 0);
    }
  • 这两个方法由Visibility的createAnimator调用
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Override
    public Animator createAnimator(ViewGroup sceneRoot, TransitionValues startValues,
            TransitionValues endValues) {
        VisibilityInfo visInfo = getVisibilityChangeInfo(startValues, endValues);
        if (visInfo.visibilityChange
                && (visInfo.startParent != null || visInfo.endParent != null)) {
            if (visInfo.fadeIn) {
                return onAppear(sceneRoot, startValues, visInfo.startVisibility,
                        endValues, visInfo.endVisibility);
            } else {
                return onDisappear(sceneRoot, startValues, visInfo.startVisibility,
                        endValues, visInfo.endVisibility
                );
            }
        }
        return null;
    }
  • View显示或隐藏时会创建对应的渐变动画。Transition的playTransition会调用createAnimators，其内部会调用createAnimator。
  • 整体流程是启动Transition->创建动画(createAnimators)->创建单个动画(createAnimator由Transition子类实现,默认空)->Visibility的onAppear()/onDisappear->子类createAnimator

总结:

Transition动画其实是对属性动画的一种高级封装。其主要流程是TransitionManager调用beginDelayedTransition,内部监听了OnPreDrawListener，其在onPreDraw调用captureView用于获取当前View的状态,调用playTransition开始转场动画。之后创建动画createAnimator。这其中captureView都是由子类实现，而createAnimator则可以由子类选择重写。最终动画的开始还有调用animator.start()
